Features
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys.
- Handing – Non-handed.
- Thru-bolts – Removable thru-bolts standard on RL Series.
- Packaging– 10 per case.
- Warranty – Five Year Mechanical Warranty
Thickness
1-3/8" - 1-3/4"
Hand
Not Handed
Color
Satin Stainless Steel
Color Code
630/US32D
Function
02-Privacy
Fire Rated
3 Hours {A}
Package Height
3.25"
Package Length
7.875"
Package Volume
92.77734375
Package Width
3.625"
ANSI Function
F76
Bolt Protection
1/2"
Latch Backset Dim
2-3/8"
Latch Number
R72
Latch Type
Spring Latch
Lever/Knob Design
B - Ball
Lock Face Size
2-1/4" x 1"
Package Qty
1
Product Height
2.125"
Product Length
2.75"
Product Width
2.5"
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
2-3/4"
Strike Number
R60
Strike Type
T-Strike
Strike Width
1-1/8"
Base Material
Stainless Steel
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Grade
ANSI/BHMA Grade 2
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Knob style
BD-Ball
Backset
2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
Series
RK Series
Projection
2.7500
Door Thickness
1-3/8" - 1-3/4"
Knob Diameter
2.5000
Bore Size
2.1250
ADA Approved
False
Application
Multi Family Housing Markets; Light Commercial
Warranty
5 Year Mechanical
Handle Type
Knob
Rose Diameter
2-1/2 Inch
Latch Throw
1/2 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Strike Size
1-1/8" x 2-3/4"
Cylinder Material
Cold Rolled Steel
Door Cross Bore
2.125 Inch
Standards
ANSI A156.2; UL Listed
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Latch bolt size
7/8 Inch
Strike Lip
1-1/4 Inch
Product Projection
2-3/4 Inch
Trim Material
Wrought Brass(Rose)
Features
Guarded Latchbolt on All Locking Functions
Number of Pins
6
Manufacturer Parent
Assa Abloy
Latch Corner
Square
Knob/Lever Size
2-1/8 Inch
Knob Style Family
Ball Knob
Sub-Series
CL_Cylindrical_Locks_arrow_140
ANSI/BHMA Standards
F76A
Keyed
No
Latch Faceplate
1" x 2-1/4"
Door Handing
Non-Handed
Standard Strike
R60 T-Strike, 2-3/4" x 1-1/8"
Door Thickness Range
1-3/8" To 1-3/4"
Fasteners
Wood and Machine Screws
Lock Type
Cylindrical
Standard Latch
R72 Springlatch; 2-3/8" Backset
Style
Knob
Package Quantity
1
Keyway
Arrow A
UL Listed
Yes
Keying
Keyed Different
Commercial/Residential
Commercial
Backset Size
2-3/8 in., 2-3/4 in., Adjustable
Security Grade
ANSI Grade 2
UNSPSC
31162801
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Privacy
Product Overview

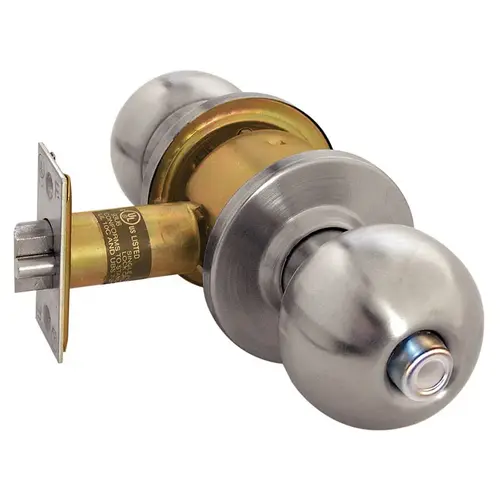

RK SeriesCylindrical Locksets
The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
Certification:- The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.
- Cold rolled steel with zinc dichromate finish for corrosion resistance.
- Requires standard 2-1/8" (54mm) bore through door.
- 2-3/8" (60mm) or 2-3/4" (70mm).
- Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.
- Brass 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking functions.
- 1" x 2-1/4" (25mm x 57mm) for 2-3/8" backset (60mm) or 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.
- Brass or stainless steel. Roses are 2-1/2" (64mm) diameter.
- Total projection from face of door is 2-3/4" (70mm).
- 4-7/8" ANSI (124mm), 2-3/4" (70mm) T strike, or 2-1/4" (57mm) full lip strike.
- Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway.
- Optional: prep for small format interchangeable.
- 2 brass keys.
- Non-handed.
- Removable thru-bolts standard on RL Series.
- 10 per case.
- Five Year Mechanical Warranty.
- BHMA - 605
- U.S. Equivalent - US3
- Arrow Equivalent - 03
- BHMA - 606
- U.S. Equivalent - US4
- Arrow Equivalent - 04
- BHMA - 613
- U.S. Equivalent - US10B
- Arrow Equivalent - 10B
- BHMA - 629
- U.S. Equivalent - US32
- Arrow Equivalent - 32
- BHMA - 630
- U.S. Equivalent - US32D
- Arrow Equivalent - 32D
