Features
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
- Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys Handing – Non-handed
- Thru-bolts – Removable thru-bolts standard on RL Series
- Packaging – 10 per case
- Warranty – Five Year Mechanical Warranty
Grade
Grade 2
Thickness
1-3/8" - 1-3/4"
Hand
Not Handed
Color
Oil-Rubbed Bronze
Color Code
613/US10B
Function
01-Passage
Fire Rated
3 Hours {A}
Package Height
3.75
Package Length
7.25
Package Volume
183.515625
Package Width
6.75
ANSI Function
F75 - Passage
Bolt Protection
1/2"
Latch Backset Dim
2-3/4"
Latch Number
R73
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
SR - Sierra
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Product Height
3.3125"
Product Length
4.75"
Product Width
2.4375"
Rose/Escutcheon Design
3-5/16 In. Diameter
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
R62
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Bronze
Origin
Taiwan
MADE IN THE USA
No
Finish
Oil-Rubbed Bronze
Security Grade
ANSI Grade 2
Package Quantity
1
UL Listed
Yes
Door Handing
Non-Handed
Assembled Product Depth
4.7 in.
AbilityOne
No
ADA Compliant
No
UNSPSC
31162807
Handle Type
Lever
Commercial/Residential
Commercial
Style
SR Design
Door Thickness
1.38 - 1.75 in.
Keying
Non-Keyed
Assembled Product Height
3.3 in.
Lockset Function
Passage
Assembled Product Width
2.4 in.
GSA Approved
Yes
Keyway
Arrow A
TAA/BAA Compliant
Yes
Backset Size
2-3/4 in.
ANSI/BHMA Standards
F75
Keyed
No
Latch Faceplate
1-1/8" x 2-1/4"
Latch Throw
1/2"
Standard Strike
R62 ASA Strike, 4-7/8" x 1-1/4"
Door Thickness Range
1-3/8" To 1-3/4"
Fasteners
Wood and Machine Screws
Lock Type
Cylindrical
Lever
SR - Sierra Lever
Standard Latch
R73 Springlatch; 2-3/4" Backset
Product Overview

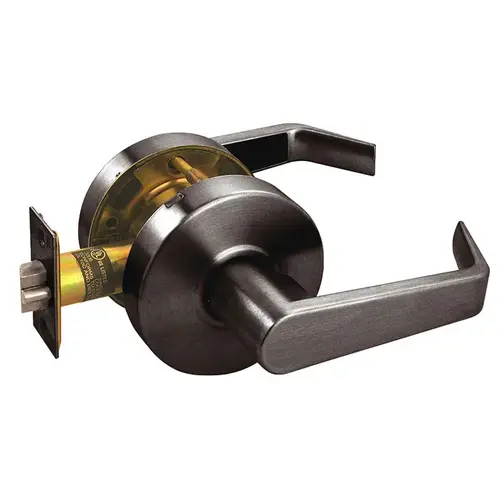

Grade 2 Passage Cylindrical Lock, Sierra Lever, Non-Keyed, Oil-Rubbed Bronze Finish, Non-handed
The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
The RL Series offers removable through bolts and a wide variety of design.
The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
