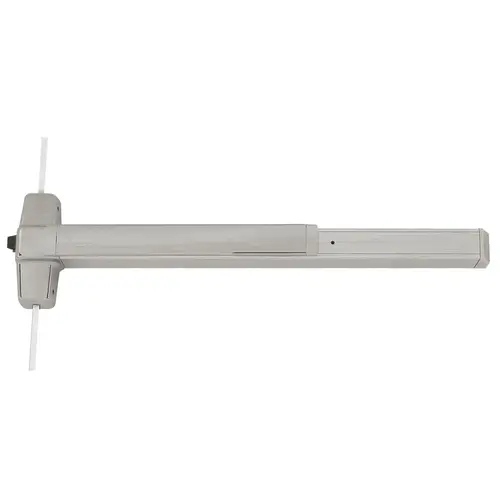

Von Duprin Three-Point Locking Exit Devices Satin Stainless Steel

Roll over image to zoom in

Von Duprin RX9857L-BE-05 4 32D LHR Von Duprin Three-Point Locking Exit Devices Satin Stainless Steel

Item #: RX9857L-BE-05 4 32D LHR by Von Duprin

See reviews See reviews

In Stock $3,642.66 /each

SAVE UP TO 364.27

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 3913/16" (1011 mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw Deadlocking rim bolt, 3 /4" (19mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available

Grade

Grade 1

Hand

LHR

Color

Satin Stainless Steel

Color Code

630/US32D

Device Length

48 In.

Fire Rated

No

Trim Design

05-Lever

Device Type

3 Point

Includes Trim

Yes

Package Qty

1

Physical Appearance

Wide Stile Pushpad

Trim Type

Passage Lever

Base Material

Stainless Steel

Switch Type

Request to Enter

Handing

Left Hand Reverse

Package Volume

2572.5

Package Height

10.5

Package Width

5

Origin

USA

BAA Qualified

Yes

Package Length

49

3 Point Exit Device, Blank Escutcheon Lever Trim, Request to Exit Switch, Satin Stainless Steel

9857/9957 Three-point latching device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9857 device has a smooth mechanism case and the 9957 device has a grooved case. The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

The 9857 device has a smooth mechanism case.

Three-point latching device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts.
