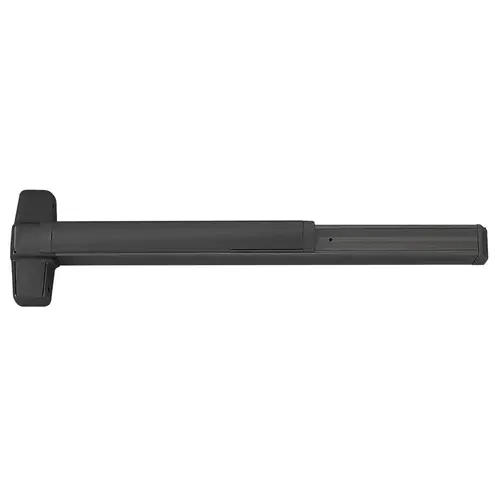

Von Duprin RX9947WDC-DT 4 315 Concealed Vertical Rod Exit Devices Black Anodized Aluminum

Item #: RX9947WDC-DT 4 315 by Von Duprin

See reviewsSee reviews

$3,486.94

/each
SAVE UP TO 348.69

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Grade

Grade 1

Color

Black Anodized Aluminum

Color Code

315/335

Device Length

48 In.

Fire Rated

No

Trim Design

Pull

Device Type

Concealed Vertical Rod

Includes Trim

Yes

Package Qty

1

Physical Appearance

Wide Stile Pushpad

Trim Type

Dummy Pull

Base Material

Aluminum

Switch Type

Request to Enter

Origin

USA

BAA Qualified

Yes

Package Height

10.5

Package Length

49

Package Volume

2572.5

Package Width

5

Product Overview

Grade 1 Concealed Vertical Rod Exit Bar for Wood Doors, 48" Device, Dummy Function, Escutcheon Pull Trim, Request to Exit Switch, Hex Dogging, Black Anodized Aluminum Finish, Field Reversible

9847WDC/9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1.
