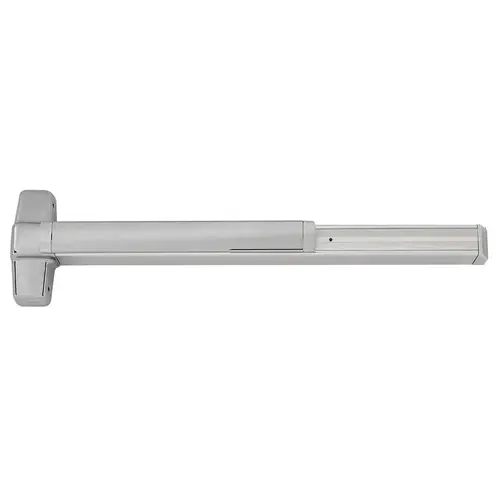

Von Duprin RX9947WDC-NL-OP 4 US28 Exit Device Satin Aluminum Clear Anodized

Item #: RX9947WDC-NL-OP 4 US28 by Von Duprin

See reviewsSee reviews
HURRY! Low in stock

$2,667.32

/each
SAVE UP TO 266.73

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Grade

Grade 1

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Device Length

48 In.

Fire Rated

No

Device Type

Concealed Vertical Rod

Includes Trim

Yes

Package Qty

1

Physical Appearance

Wide Stile Pushpad

Trim Type

Nightlatch No Pull

Base Material

Aluminum

Switch Type

Request to Enter

Origin

USA

BAA Qualified

Yes

Package Height

10.5

Package Length

49

Package Volume

2572.5

Package Width

5

Product Overview

Concealed Vertical Rod Exit Device, Night Latch, Optional Pull, Request to Exit Switch, Satin Aluminum Clear Anodized

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 9947 device has a grooved case and comes in several available finishes.
