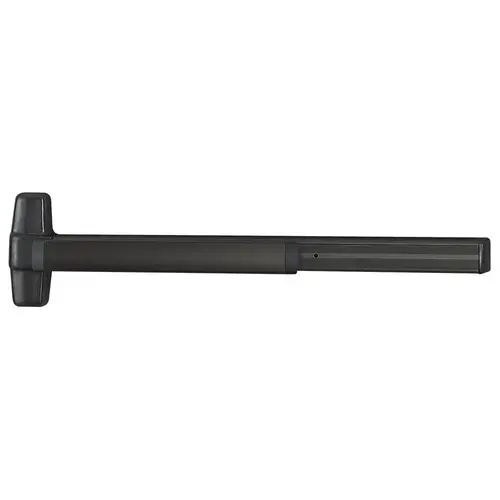

Von Duprin RX9948L-NL-05 3 315 LHR Von Duprin Concealed Vertical Rod Exit Devices Black Anodized Aluminum
Item #: RX9948L-NL-05 3 315 LHR by Von Duprin
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking top bolt, 3/4" (19mm) throw Deadlocking bottom bolt, 1 1/2" (38mm) throw
- Door undercut: 3 /4" (19mm) maximum, more than 1 /4" minimum
- Top & bottom Latch case: 4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
- Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
Grade
Grade 1
Hand
LHR
Color
Black Anodized Aluminum
Color Code
315/335
Device Length
36 In.
Fire Rated
No
Trim Design
05-Lever
Device Type
Concealed Vertical Rod
Includes Trim
Yes
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Trim Type
Nightlatch Lever
Base Material
Aluminum
Switch Type
Request to Enter
Handing
Left Hand Reverse
Package Width
5
Package Volume
1942.5
Package Length
37
Package Height
10.5
BAA Qualified
Yes
Origin
USA
Concealed Vertical Rod Exit Device, Night Latch Lever Trim, Request to Exit Switch, Black Anodized Aluminum
9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Devices are ANSI A156.3 - 2008 Grade 1. The 9848 device has a smooth mechanism case and the 9948 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used:SD (special dogging), or SS (signal switch).
For use on single or double metal doors and is UL listed.
The 9948 Series is ANSI A156.3 - 2008 GRade 1. The 9948 Series device has a grooved case and comes in many available finishes.
