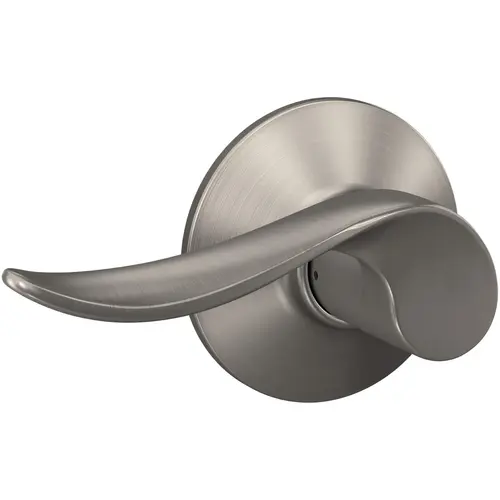

Schlage Residential F10 SAC 619 F10SAC619 16-080 10-027 Sacramento Passage - Satin Nickel
Item #: F10 SAC 619 by Schlage Residential
UPC #: 043156445660
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Passage/Hall/Closet
Finish
Satin Nickel
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Sacramento Lever
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Nickel
Lever Style
SAC-Sacramento
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.7188
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5.1560 Inch
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-SAC
Lever Style Family
Wave Lever
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
YES
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
3.25x6x7"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Product Projection
2.7188 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Finish Family
Satin Nickel
Collection
Sacramento
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
1.6 lbs
Product Overview
The Schlage Sacramento Lever Hall and Closet Lock in Satin Nickel is perfect for use on doors where locking is not needed. The Sacramento Lever is polished and playful, with an arched design that lends itself to almost any style, especially when wrapped in our versatile Satin Nickel finish. Plus, it's been designed and tested with strength and durability in mind.
