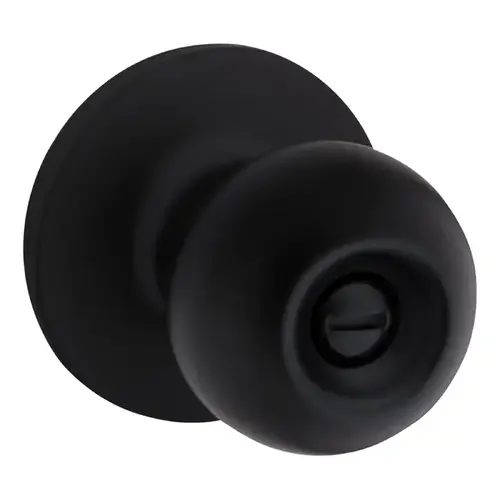

Safelock SK3000-RG-514Click To Copy Regina Knob Privacy Lock with RCAL Latch and RCS Strike Matte Black Finish

SK SeriesKnob Locks

Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge Bore 1"
• Latch Face 1" x 2-1/4"

Backset:

• Adjustable 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/8" - 1-3/4" doors standard
• No thick door option

Cylinder:

• KW 5 pin

Faceplates:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• 2-1/4" full lip
• Specify round corner or square corner

Bolt:

• 1/2" Throw

Door Handing:

• Non-handed

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• N/A

UL:

• Meets UL 3 hour fire rating for all UL functions. ULRef #R7860

Functions: Passage/Hall/Closet:

• Both knobs & levers always free.
• 1000/1002UL -F75

Privacy/Bed/Bath:

• Both knobs locked or unlocked by turnbutton inside. Outside knob unlocked by emergency key.
• 3000 - F76

Entry:

• Both knobs locked or unlocked by key outside or turnbutton inside.
• 5000/5002UL - F82

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.
• 7000 - Int.

• Note: Description (ANSI/BHMA functions are listed in italics)

Knobs Styles: RG:

• Regina

AS:

• Athens

Finishes: 11P:

• Venetian Bronze

15:

• Satin Nickel

26:

• Polished Chrome

26D:

• Satin Chrome

514:

• Matte Black
