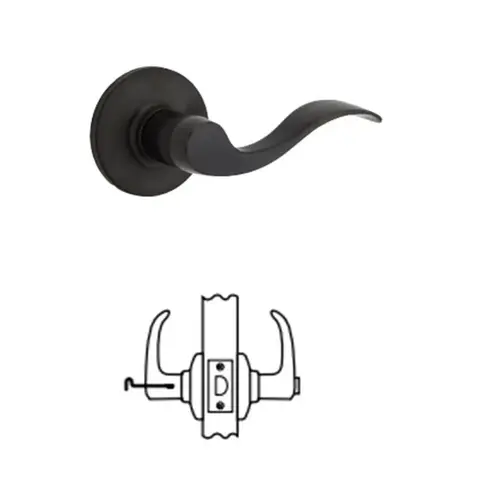

Safelock SL3000-LY-11P-RFAL-RCS Layton Privacy Lever
Item #: SL3000-LY-11P-RFAL-RCS by Safelock
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Strike Size
2-1/4 Inch
Finish
Venetian Bronze
Finish Description
Venetian Bronze
Function
3000-Privacy/Bed/Bath
Latch Type
Round Face Adjustable
Grade
ANSI/BHMA Grade 3
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"; Latch Face: 1" x 2-1/4"
ADA Compliant
YES
Product Height
2-9/16 Inches
Strike
RCS-Round Corner Strike
Application
New Multi-Unit Buildings or Single Family Homes
Bore Size
2.1250
Lever Length
3.6250
Standards
ANSI/BHMA A156.2 Grade 3
Lever Style
LY-Layton
Door Thickness
1-3/8" to 1-3/4"
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Strike Type
Round Corner Strike
Bolt Throw
1/2 Inch
Backset
2-3/8 Inch or 2-3/4 Inch
Projection
2.3750
Warranty
Mechanical and Finish Lifetime Limited Warranty
Color Code
11P
ANSI Function
F76
Finish Family
Dark Bronze
Case Dimensions
14.5" L x 11" W x 16.5" H
Function Description
Both levers locked or unlocked by thumbturn or push button inside. Outside lever unlocked by emergency key.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-3/8 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
3.625 Inch
Door Edge Bore
1 Inch
Sub-Series
SL3000-LY-RFAL-RCS
Door Cross Bore
2.125 Inch
Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.
Specifications: Door Prep:- Cross Bore 2-1/8"
- Edge Bore 1"
- Latch Face 1" x 2-1/4"
- Adjustable 2-3/8" or 2-3/4"
- UL 2-3/4" standard 2-3/8" option
- 1-3/8" - 1-3/4” doors standard.
- No thick door option
- KW 5 pin
- 1" x 2-1/4"
- Specify round corner, square corner or drive-in
- 2-1/4" full lip
- Specify round corner or square corner
- 1/2" Throw
- A156.2 Grade 3
- 1000 and 7000 functions satisfy section 4.13.9 ADA requirements
- Meets UL 3 hour fire rating for all UL functions. ULRef #R7860
- Both levers always free.
- 1000/1002UL -F75
- Both levers locked or unlocked by turnbutton or push button inside. Outside lever unlocked by emergency key.
- 3000/4000 - F76
- Both sides locked or unlocked by key outside or turnbutton or push button inside.
- 5000/5002UL/6000 - F82
- For doors where only a pull is required. No operation.
- 7000 - Int.
- Note: Description (ANSI/BHMA functions are listed in italics)
- Winston
- Grapevine
- Layton
- Daylon
- Venetian Bronze
- Satin Nickel
- Polished Chrome
- Satin Chrome
- Matte Black
