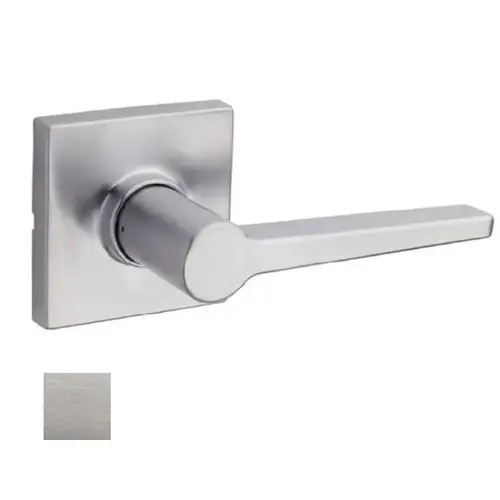

Safelock SL4000-DAL-SQT-26D-RCAL-RCS Daylon Privacy Lever Satin Chrome

SL SeriesLever Locks

Safe Lock products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Safe Lock you have selected the best quality product, backed by the best customer service available.

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge Bore 1"
• Latch Face 1" x 2-1/4"

Backset:

• Adjustable 2-3/8" or 2-3/4"
• UL 2-3/4" standard 2-3/8" option

Door Thickness:

• 1-3/8" - 1-3/4” doors standard.
• No thick door option

Cylinder:

• KW 5 pin

Faceplates:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• 2-1/4" full lip
• Specify round corner or square corner

Bolt:

• 1/2" Throw

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• 1000 and 7000 functions satisfy section 4.13.9 ADA requirements

UL:

• Meets UL 3 hour fire rating for all UL functions. ULRef #R7860

Functions: Passage/Hall/Closet:

• Both levers always free.
• 1000/1002UL -F75

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton or push button inside. Outside lever unlocked by emergency key.
• 3000/4000 - F76

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton or push button inside.
• 5000/5002UL/6000 - F82

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.
• 7000 - Int.

• Note: Description (ANSI/BHMA functions are listed in italics)

Lever Styles: WI:

• Winston

GV:

• Grapevine

LY:

• Layton

DAL:

• Daylon

Finishes: 11P:

• Venetian Bronze

15:

• Satin Nickel

26:

• Polished Chrome

26D:

• Satin Chrome

514:

• Matte Black
