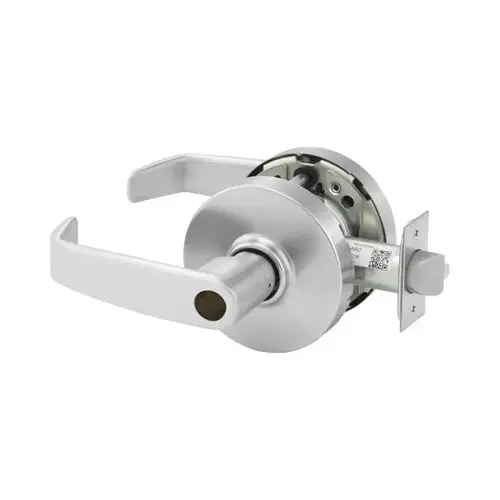

Sargent 10XG17-LL-26D-LC 10X Line G17 Utility Door Lockset-Less Cylinders

Item #: 10XG17-LL-26D-LC by Sargent

See reviewsSee reviews
See reviews summary

$812.76

/each
SAVE UP TO 81.28
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Grade

ANSI/BHMA Grade 1

Application

Heavy Duty Commercial and Institutional Interior and Exterior Doors; Offices; Schools/Universities; Hospitals; Manufacturing Facilities

Backset

2-3/4 Inch

Handing

Non-Handed

Warranty

10 year limited

Sub-Series

Sargent-10XG17-LL-LC

Lever Style Family

Straight Return Lever

Latch Bolt Material

Stainless Steel

Knob/Lever Size

4-1/2 Inch

Latch Corner

Square

Lever Length-Inches

4-1/2 Inch

Manufacturer Parent

Assa Abloy

Series

10X Line

Product Type

Cylindrical Lock

Features

Secure high traffic openings with design options to compliment any decor. Manufactured of the highest-quality materials to provide durability, strength, and reliability.

Minimum Stile Width

4-1/2 Inch

Trim Material

Solid Cast (Lever); Heavy Wrought (Rose)

Product Projection

2-15/16 Inch

Strike Lip

1-1/4 Inch

Function Family

Asylum/Institution/Utility

Front Size

2-1/4" x 1-1/8"

Function Description

Deadlocking latchbolt by key either side. Both levers locked at all times. Use only on rooms with more than one exit.

Cylinder Type Used

Less Cylinder

Standards

ANSI/BHMA A156.2 Series 4000, Grade 1; UL and cUL Listed; UL 10C Positive Pressure Requrements

Door Cross Bore

2.125 Inch

Rose/Escutcheon Trim

L-Rose

Strike Size

4-7/8" x 1-1/4"

Lever Style

L-Lever

Finish Family

Satin Chrome

ADA Compliant

YES

Strike Type

ANSI Curved Lip

Strike Number

808

Latch Type

Deadlocking/Guarded

Latch Number

10-3192

ANSI Function

F87

Finish Description

Satin Chrome

Latch Throw

1/2 Inch

Cylinder Type

Conventional Less Cylinder

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Rose Diameter

3-1/2 Inch

Door Thickness

1-3/4" (44mm) to 2" (51mm)

Handle Type

Lever

Function

G17-Utility/Asylum/Institutional

Color Code

626/US26D

Product Overview
Utility/Asylum/Institutional Function with L Rose and L Lever, 2-3/4" Backset, #808 ANSI Strike, 26D Satin Chrome Finish, Less Cylinders
