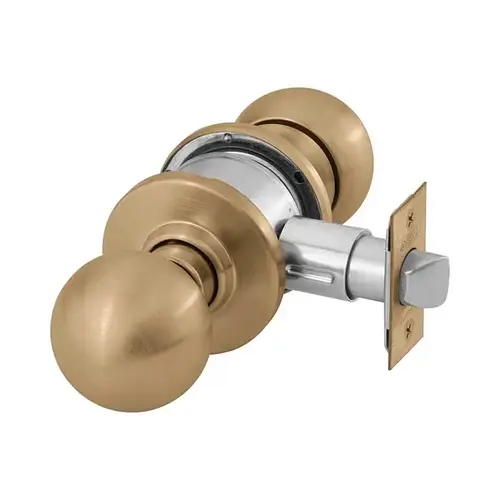

Sargent 24-6U15-OB-10 6 Line U15 Passage Knob Lockset
Item #: 24-6U15-OB-10 by Sargent
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Bronze
Grade
ANSI/BHMA Grade 2
Backset
2-3/4 Inch
Function
U15-Passage
Door Thickness
1 3/8" - 1 3/4"
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Finish Description
Satin Bronze
Knob style
B-Knob
Rose/Escutcheon Trim
O-Rose
Product Type
Cylindrical Lock
Application
Standard Duty Commercial Buildings; Offices; Apartment Buildings; Hotel/Motel; Residential Housing; Retail; Churches; Warehouses
Warranty
1 year limited
Color Code
612/US10
Handle Type
Knob
Rose Diameter
2-1/2 Inch
Latch Throw
1/2 Inch
Standards
ANSI/BHMA A156.2 (2017) Series 4000 Grade 2; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Function Description
Latch retracted by knobs/levers at all times
Front Size
2-1/4" x 1"
Function Family
Passage/Hall/Closet
Strike Lip
1-1/4 Inch
Product Projection
2-13/16 Inch
Trim Material
Wrought (Knob, Rose)
Minimum Stile Width
4 Inch
Features
Installs With Just Two Lock body Screws for Easy Installation and Maintenance; Latch Retracted by Either Knob
ANSI Function
F75
Strike Number
808 ANSI Strike
Strike Type
ANSI Curved Lip
ADA Compliant
No
Finish Family
Satin Bronze
Manufacturer Parent
Assa Abloy
Knob/Lever Size
2-1/8 Inch
Latch Bolt Material
Brass
Knob Style Family
Ball Knob
Sub-Series
CL_Cylindrical_Locks_sargent_257
Strike Size
4-7/8" x 1-1/4"
Incorporating a broad spectrum of functions, designs and finishes, the 6 Line® is a highly styled standard duty lock, easily customized to suit fine homes, hotels and commercial buildings. Installs with just two lockbody screws for easy installation and maintenance.
Features:- Latches available in four standard backsets
- Non-handed or field reversible
- Fits standard ANSI/BHMA A156.115 door prep
- Certified ANSI A156.2 Series 4000 — Grade 2
- UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
- Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Asse
- 1-3/8" (35mm) thick door adjustable to 1-3/4" (44mm)
- 2-3/8" (60mm) x 1" (25mm) standard
- Steel, zinc dichromate finish
- Wrought brass, bronze or stainless steel 800 curved lip strike standard
- Non-cylinder locks — non-handed
- Cylinder type locks — reversible in field
- Heavy wrought brass or bronze
- Heavy wrought brass or bronze
- Brass x 1/2" (13mm) throw
- Brass, 6 pin, LA keyway standard
- Two, nickel silver
- Can be master keyed or grand master keyed Construction key systems available
- 3, 4, 10, 10B, 10BE, 26, 26D
- 160 Standard Door Prep
- 4" (102mm) with B and O roses
- 4-1/2" (114mm) with E and L roses
- Lockbody fits doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick
- Latches are available in 4 standard backsets
- Non-handed or field reversible
- Fits ANSI 115.2 (160) door prep
- Multiple latches and strike options available including radius/round applications
- Wide variety of functions and options
- Complements and blends with trim designs of other SARGENT locks for unified appearance
- Certified ANSI A156.2 Series 4000 — Grade 2
- Accepts SARGENT standard and high security core cylinders
- Quality finishes with split finishes optional
- Fire Code compliance with all functions depending on application
- MicroShield® permanent silver-base antimicrobial coating.
- Installs with just two lockbody screws for easy installation and maintenance
- Mix rose and knob designs for a custom look — 2 knob and 4 rose designs
- Standard duty commercial buildings
- Offices
- Apartment buildings
- Hotel/Motel
- Residential housing
- Retail
- Churches
- Warehouses
