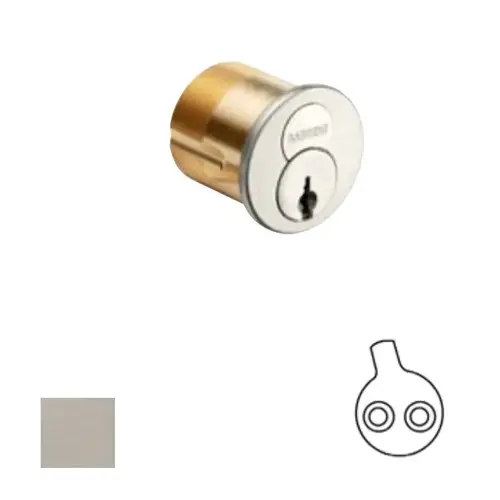

Sargent 63-42-101-HA-32D 6300 Series 42 Interchangable Mortise Cylinder Satin Stainless Steel

6300 SeriesLarge Format Interchangeable Cores

6300 Permanent Large Format Interchangeable (Removable) Cores Cylinders

Features:

• SARGENT LFIC (Removable) Core Cylinders and Master Key Systems are available for a quick change of cylinders for increased security . It is not necessary to remove the lock from a door to rekey the opening

• Special "control" key is used to release a locking cam allowing immediate removal of the core

• Available for use in many SARGENT products (Exit Devices, Mortise locks, Bored locks and padlocks)

• LFIC Key Systems can also include conventional cylinders operated by the same Master/change keys when the 6300 quick change feature is not needed

• Can be master or grand-master keyed

• 2 Change keys provided

• 6 pin standard

• 1 bitted available for field keying

• 1 bitted cylinders supplied with 2 key blanks, pins and springs in chambers in 3 and 4 only

• HA keyway will be supplied unless otherwise specified

• Wide variety of master key systems available

• Permanent (keyed Large Format Interchangeable) cores supplied with hardware unless specified otherwise

• Available in the following SARGENT keyway families: A, B, C, G, H, K, L, N, R, and V

• Also available in the following single key sections: CR and S

• Control key is 6272 CTL, ordered separately

• Finishes: 4, 15

• Ordering as a: 6300 LFIC Core x finish and give all keying information
