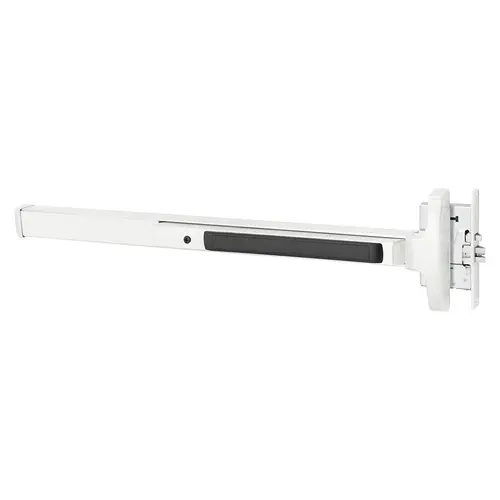

Sargent 8344G ETE RHR WSP Mortise Exit Device White Suede Powder Coat
Item #: 8344G ETE RHR WSP by Sargent
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
White Suede Powder Coat
Right Hand Reverse
Grade 1 Mortise Exit Device, Narrow Stile Pushpad, 48" Device, Night Latch Function, E Freewheeling/Vandal Resistant Lever, Hex Key Dogging, White Suede Powder Coat Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
A narrow design, push rail style, mortise lock exit device.
The 8300 Series is designed for standard width stiles with a narrow design look and is part of Sargent's full line of exit devices. These exit devices provide the best combination of strength, simplicity, aesthetics, and innovation.
