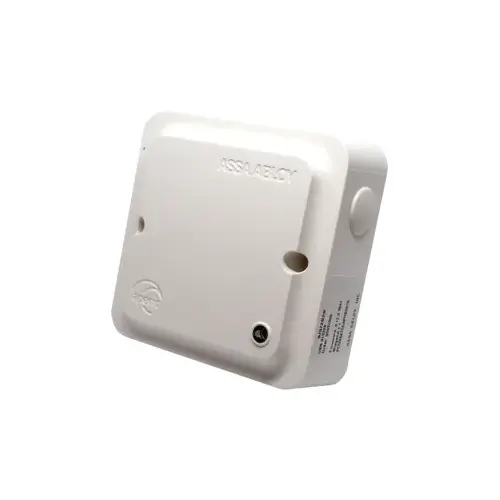

Sargent AH20W14 NNNN Aperio Hub 1 Door IP Hardware Version

Item #: AH20W14 NNNN by Sargent

See reviews See reviews

In Stock $411.06 /each

SAVE UP TO 41.11

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

151914

SARGENT IN100 Aperio Wireless Access Control Hub

The IN100 lock uses short distance wireless transmission (IEEE 802.15.4, 2.4 GHz) to communicate with an Aperio hub, which is connected to an access control system via IP, RS-485 or Wiegand.



SPECIFICATIONS

  • Wireless Communication: IEEE 802.15.4 (2.4GHz).
  • Wireless Range: 50 feet (depending on installed environment.)
  • EAC Communication: IP, RS-485 or Wiegand.
  • Power: Powered using Power over Ethernet (PoE) or external power supply (8-24VDC).
  • Security: AES 128 encryption.
  • Operating Temperature: 41°F (5°C) to 95°F (35°C).
  • Humidity: < 95 % maximum (non-condensing).

    • Aperio Hub Options

    SERIES

  • AH: Aperio Hub.

    • HARDWARE VERSION

  • 20: Wiegand Hub.
  • 30: RS-485 Hub.
  • 40: IP Hub.

    • HARDWARE CONFIGURATION

  • W14: Wiegand 1:1.
  • R12: RS-485 1:8.
  • IN2: IP 1:16.

    • CONFIGURATION

  • NNNN

    • Aperio Hub Accessories

    Aperio External Antenna (EXT-10-ANT)

    Aperio hubs are certified for use with the ASSA ABLOY external (omnidirectional) antenna EXT-10-ANT. The external antenna may be used to obtain more even radio coverage around the hub. Please note that the antenna does not extend the maximum range of the Aperio hub.



    SPECIFICATIONS

  • For indoor use only.
  • Operating Temperature: 32ºF (0ºC) to 113ºF (45ºC).
  • Humidity: < 95 % maximum (non-condensing).

    • FINISHES

    » N/A
