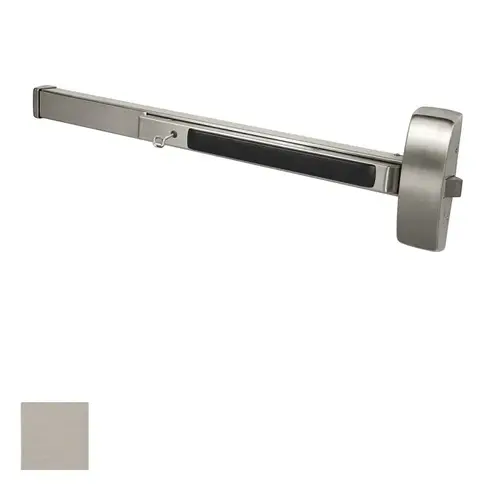

Sargent HC-8804-G-32DClick To Copy 8800 Series 8804 Rim Exit Device Satin Stainless Steel

8800 SeriesRim Exit Device

Ideal for environments that require strong and durable security solutions, the 80 Series exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength, and support unique applications, including delayed egress, alarmed exit, and electric latch retraction.

Available as rim, mortise, concealed vertical rod and surface vertical rod configurations, the 80 Series features a wide range of options making it the perfect solution for every application.

Benefits: Security:

• Multiple security features provide additional resistance against vandalism and unauthorized entry

Ease of Install:

• Modular components and robust design allow for a quick and easy installation

Aesthetics:

• Attractive, minimalist design featuring many levers and architectural finishes to blend with any decor

Features:

• Designed for standard width stile applications on wood and metal doors

• Also available as an HC8800 or WS8800 for hurricane-resistant applications, see Hurricane-Resistant section of this catalog

• Single point rim latching device

• Single door & double door applications with mullions

• Quiet operation and solid security

• ANSI/BHMA A156.3 - Grade 1

• UL10C (Fire) and UL305 (Panic) Listed

Specifications: Door Type:

• Metal Doors

Door Thickness:

• 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 2 1/4" thick, specify thickness and order as 31-

Strike:

• 649 Standard Black Nylon Coated

Dogging Feature:

• Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting Fasteners:

• Supplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Device Centerline from Finished Floor:

• 41" (1041 mm) for Standard Applications

Center Case Dimensions:

• 8-3/8" (213mm) x 2-5/8" (67mm)

Projection:

• Pushbar Neutral – 3" (76 mm)
• Pushbar Depressed – 2-1/8" (54 mm)

Rail sizes as determined by door width: E Rail:

• 24" to 32" door widths, No cutting required for 32" door

F Rail:

• 33" to 36" door widths, No cutting required for 36" door

J Rail:

• 37" to 42" door widths, No cutting required for 42" door

G Rail:

• 43" to 48" door widths, No cutting required for 48" door

• Rails are available in 4 sizes, use door width to determine size needed
• Rails will be factory cut to size, if door width is supplied

Maximum Door Opening-Fire Doors: Door Material:

• Metal

Single Door:

• 3 Hour 4' x 10'

with 12-HC980 or 12-980 or 12-HCL980 Mullion:

• 3 Hour 8' x 8'

with 12-L980:

• 1.5 Hour 8' x 8'

with 12-HD980 Mullion:

• 3 Hour 8' x 10'
