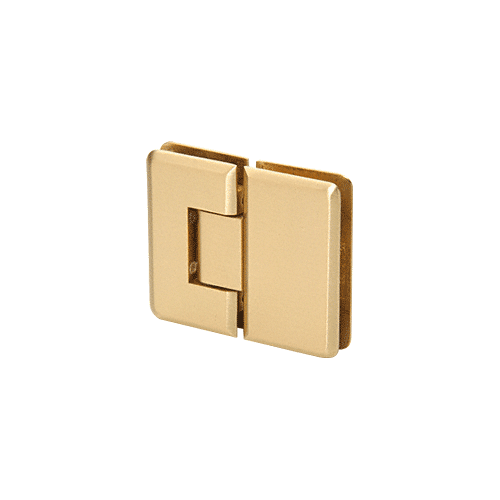

CRL C0L180SB Satin Brass Cologne 180 Series 180 Glass-to-Glass Hinge

Item #: C0L180SB by CR Laurence

See reviews

$124.85 /each

SAVE UP TO 12.48

Buying in bulk

Roll over image to zoom in

CRL C0L180SB Satin Brass Cologne 180 Series 180 Glass-to-Glass Hinge

Item #: C0L180SB by CR Laurence

See reviews See reviews

$124.85 /each

SAVE UP TO 12.48

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • 180º Glass-to-Glass
  • Use Monolithic Tempered Glass

Shipping Weight

2 Lb (907g)

Width

2-1/4" (57 mm)

Height

3-15/16

Finish

Satin Brass

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

3/8 to 1/2

Maximum Door Width

36

Edge Profile

Beveled

Adjustable

No

Finish/Color

Satin Brass

Width - Sidelite Portion (Inches)

2-1/4

Self-Centering

Yes

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Width - Door Portion (Inches)

2-1/4

Glass To Glass Angle (Degrees)

180

Positive Close

No


CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º
side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
