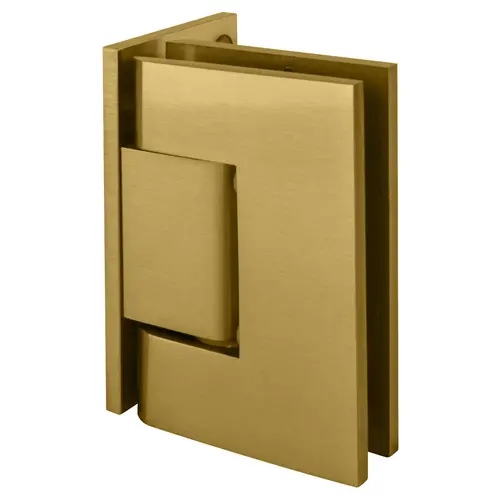

CRL GEN044SB Satin Brass Copper Geneva Series Wall Mount Offset Back Plate Hinge, Brass Material, 5/16" To 1/2" Glazing Thickness, Satin Brass Finish
Item #: GEN044SB by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with stainless steel pins and springs, finished in Satin Brass for use in shower hardware systems.
- Designed for 5/16" to 1/2" tempered safety glass, suitable for various wall mount shower door hinge applications.
- Features a wall mount offset back plate design with a depth of 2-3/16", providing a stable connection to bathroom walls.
- Self-centering mechanism engages within 15 degrees of the closed position, with a reversible 5-degree pivot pin for adjustment.
- Supports a maximum door weight of 80 lbs with 2 hinges or 120 lbs with 3 hinges, for doors up to 28" or 32" wide respectively.
- Allows for 90-degree inward and outward door swings, suitable for standard residential or hotel shower door configurations.
- Includes necessary gaskets and screws for installation, requiring specific glass fabrication dimensions for proper mounting.
Depth
2-3/16" (56 mm)
Finish
Satin Brass
Back Plate
Offset
Glazing Thickness
5/16 To 1/2
Adjustable
No
Finish/Color
Satin Brass
Series
Geneva
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges
28"
Maximum Door Width - 3 Hinges
32"
Maximum Door Weight - 3 Hinges
120 Lbs.
Maximum Door Weight - 2 Hinges
80 Lbs.
Mounting Type
Wall Mount
Material
Brass
Mounting Style
Wall mount
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Product Overview
The Satin Brass Geneva Series Wall Mount Offset Back Plate Hinge is designed for mounting shower doors to walls. Constructed from solid brass with stainless steel pins and springs, this hinge is suitable for 5/16" to 1/2" tempered safety glass. It features a self-centering mechanism that engages within 15 degrees of the closed position and includes a reversible 5-degree pivot pin, allowing for a standard 90-degree closing or a 5-degree tighter closure into the shower interior. The hinge allows for 90-degree inward and outward swings. When using two hinges, it supports a maximum door weight of 80 lbs and a maximum door width of 28". With three hinges, it supports up to 120 lbs and a maximum door width of 32". The hinge has a depth of 2-3/16". Installation requires specific glass fabrication dimensions and gaskets. The Satin Brass finish provides a consistent aesthetic for bathroom hardware.
