CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

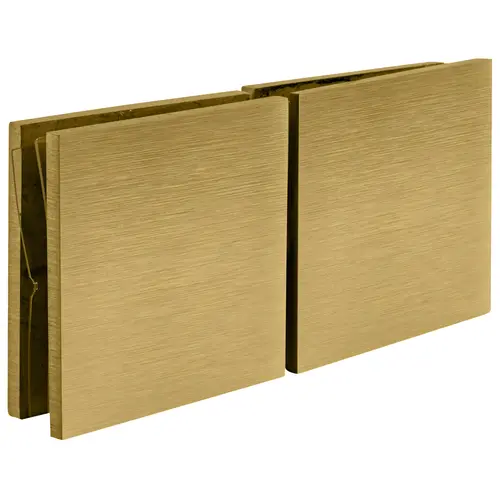

CRL SGC188SB Satin Brass Square 180 Degree Glass-to-Glass Movable Transom Clamp
Item #: SGC188SB by CR Laurence
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, and 180 Degree Models Available
Overall Width
4-1/16 in (103 mm)
Size
4-1/16" (103 mm) Wide x 2" (51 mm) High
Hole Required in Glass
3/8" to 1/2" (10 to 12 mm)
Finish
Satin Brass
Mounting Type
Pivoting Glass To Glass
Material
Brass
Glazing Thickness
3/8 to 1/2
Finish/Color
Satin Brass
Glass To Glass Angle
180 degrees
Mounting Style
Pivoting Glass To Glass
Enclosure Type
Niche, Tailor Made Solutions
Design Style
Squared
Product Overview
CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
