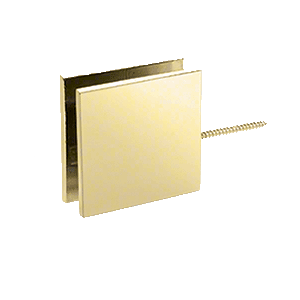

CRL SGC186SB Satin Brass Square Wall Mount Movable Transom Clamp

2 reviews

$16.70 /each

Item #: SGC186SB by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL SGC186SB Satin Brass Square Wall Mount Movable Transom Clamp

2 2 reviews

$16.70 /each

Item #: SGC186SB by CR Laurence

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Use Monolithic Tempered Glass
  • For 3/8" to 1/2" (10 to 12 mm) Thick Glass
  • Glass Transom Swivels to Allow Release of Steam
  • Solid Brass Material
  • Wall Mount, and 180 Degree Models Available

Minimum Order

1 Each

Width

2 in (51 mm)

Size

2" (51 mm) Wide x 2" (51 mm) High

Height

2" (51 mm)

Hole Required in Glass

3/8" to 1/2" (10 to 12 mm)

Finish

Satin Brass

CRL Square Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). NOTE: Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes
Includes: Gaskets and Mounting Screws
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
