Satin Chrome Berlin 135 Series 135 degree Glass-to-Glass Hinge

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

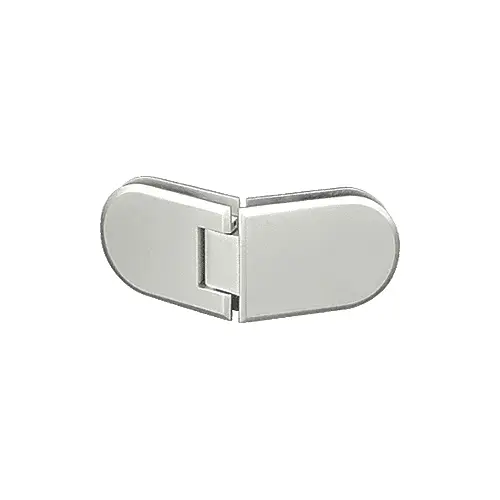

CRL BER135SC Satin Chrome Berlin 135 Series 135 degree Glass-to-Glass Hinge

Item #: BER135SC by CR Laurence

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 135º Glass-to-Glass
  • Rounded Design Ideal for "Soft Decors"

Height

2-3/4" (70 mm)

Width

7-3/4 in (197 mm)

Finish

Satin Chrome

Product Overview
The CRL Berlin Series of hinges combines elegant design with superb quality. This family of hinges features a Wall Mount Hinge with Offset Back Plate, which leaves the mounting plate visible only from inside the shower. Three Glass-to-Glass models round out the selection. Choose from a number of beautiful finishes to accentuate the décor of most bathrooms. Berlin Hinges are constructed of solid brass, and will provide a new inspiration combined with a classic past.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
