30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- Available in Several Beautiful Finishes

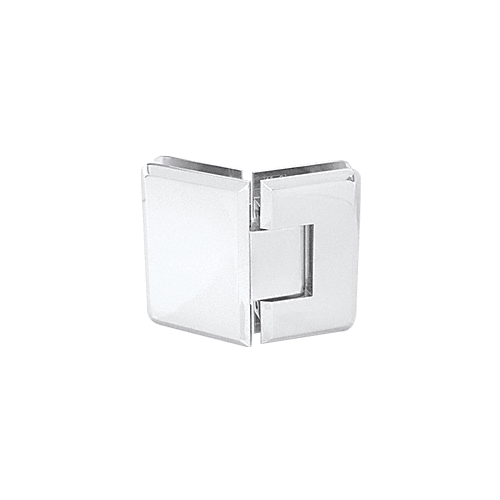

- 135º Glass-to-Glass
- Use Monolithic Tempered Glass
2 Lb (907g)
2-1/4" (57 mm)
3-15/16" (100 mm)
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting DK Hardware Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
