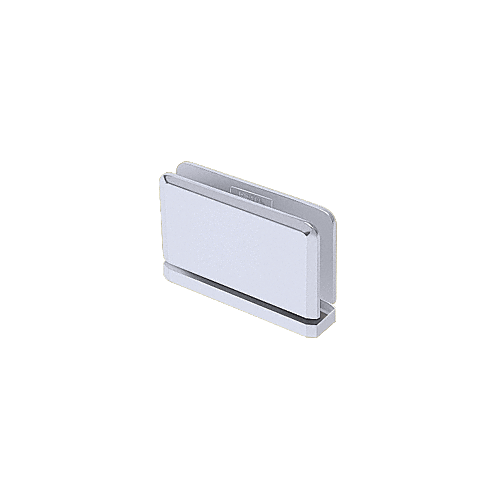

CRL JRPPH01SC Satin Chrome Junior Prima 01 Series Top or Bottom Mount Hinge
Item #: JRPPH01SC by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Top or Bottom Mount
- For Use with 1/4" (6 mm) Glass
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
2 Lb (907g)
1-5/8" (41 mm)
3" (76 mm)
Maximum Door Width
Maximum Door Weight - 2 Hinges (Pounds)
Advantages of CRL Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The JRPPH01 Model is adaptable to our Junior Header System. (must order JRHAB01 Junior Adaptor Block separately)
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
