Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

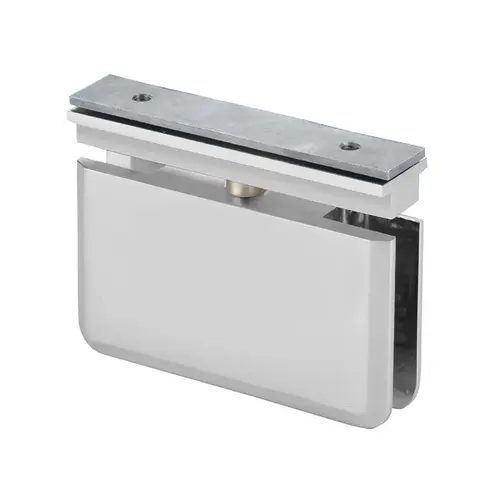

CRL PPH06SC Satin Chrome Prima 06 Series EZ-Adjust Top Mount Hinge
Item #: PPH06SC by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Top Mount (Compatible Only with EZ-Adjust Header)
- Use Cat. No. PPH01 as Bottom Hinge
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
Shipping Weight
2 lb (907g)
Height
2
Width
3-5/8
Finish
Satin Chrome
Edge Profile
Beveled
Maximum Door Width
31
Mounting Type
Head & Sill Mount
Maximum Door Weight - 2 Hinges
100 Lbs.
Glazing Thickness
5/16 To 3/8
Material
Brass
Finish/Color
Satin Chrome
Series
Prima
Self-Centering
Yes
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Weight - 2 Hinges
100
Product Overview
CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
