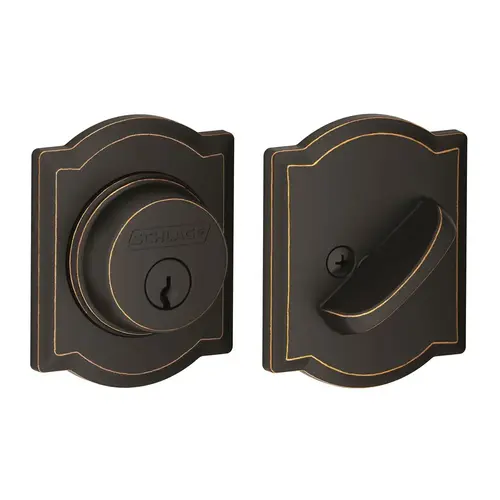

Schlage Residential B60-716-CAM B60 Deadbolt with Camelot Trim, Aged Bronze

B SeriesDeadbolts

With premium metal construction and plated keyways, Schlage mechanical and electronic deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.

Available Functions: B60 / E2152 - Single Cylinder Deadbolt Lock:

• Deadbolt thrown or retracted by key from outside or by inside turn unit
• Bolt automatically deadlocks when fully thrown

B62 / E2142 - Double Cylinder Deadbolt Lock*:

• Deadbolt thrown or retracted by key from either side
• Bolt automatically deadlocks when fully thrown

B80 / E2192 - One-Sided Deadbolt:

• Deadbolt thrown or retracted from interior side only
• No exterior plate or exposed trim
• Non-graded

B81 - One-sided Deadbolt with Exterior Plate:

• Deadbolt thrown or retracted from interior side only
• Exterior plate covers exposed prep on outside
• Non-graded

• *Caution. Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

• Note: Double cylinder locks are not available as UL Listed

Latches & Strikes: Latches:

• 12-321 - Dual Option (Round, Drive-in) - Standard
• 12-288 - Square Corner
• 12-287 - Triple Option (Round, Square, Drive-in)
• 12-294 - UL Listed Square Corner with Firecup
• 12-397 - UL Listed Round Corner with Firecup
• 12-355 - Tapered Deadbolt Triple Option
  (Round, Square, Drive-in)

Strikes:

• 10-116 - Round Corner Strike with Reinforcer - Standard
• 10-092 - Round Corner Full Lip Strik
• 10-094 - Square Corner Strike with Reinforc

Specifications: Models:

• B60, B62, B80, B81

Certification:

• ANSI/BHMA A156.36-2016 Commercial Grade 1
• ANSI/BHMA A156.40-2015 Residential Grade AAA
• Available UL Listed for 3-hour fire door (B60 only), 20 minute cUL with hosestream.

Deadbolt:

• 1" x 2 1/4", radius corner, 1" housing diameter, 1" throw, latch number 12-321

Strike:

• 1/8” x 2 3/4", 1/4" radius corner, strike number 10-116

Backset:

• Adjustable for 2 3/8" or 2 3/4"

Cylinder:

• 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)

Door Range:

• Standard 1 3/8" - 1 3/4", Optional door thickness available up to 2.1/4" for B60 and B62.

Keys:

• Two keys per lock, 5-pin, keyed 5-pin, C section

Reinforcement:

• Door frame strike reinforcer with 3" screws

• Locks are furnished with standard features unless otherwise specified.
  To order locks with non-standard features, specify non-standard feature desired.

Finishes: 505:

• Lifetime Bright Brass

605:

• Bright Brass (US3)

608:

• Satin Brass

609:

• Antique Brass (US5)

613:

• Oil-Rubbed Bronze (US10B)

618:

• Polished Nickel

619:

• Satin Nickel (US15)

620:

• Antique Pewter (US15A)

621:

• Distressed Nickel

622:

• Matte Black (US19)

625:

• Bright Chrome (US26)

626:

• Satin Chrome (US26D)

716:

• Aged Bronze

• Non-standard finishes are not available.
• Full-color swatch examples available on inside Deadbolts tab.
