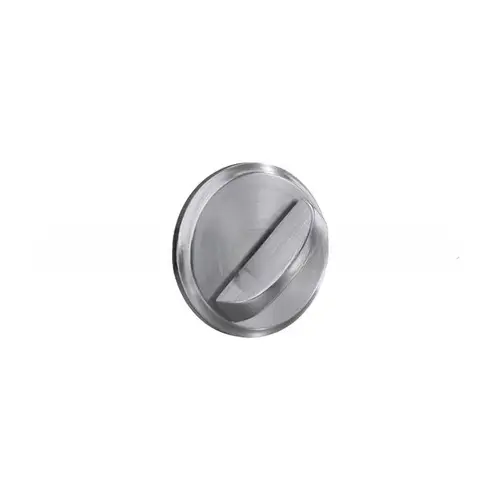

Schlage Residential B80F 626 Fire Rated One-Sided Deadbolt Deadlock, Dual Option Latch, Round Corner Strike with Reinforcer, Satin Chrome Satin Chrome
Item #: B80F 626 by Schlage Residential
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Applications: Residential single- and multi-family doors
- Certifications: Meets Grade 1 BHMA requirements
- U.L. Listed: Locks for up to three-hour fire doors available
- Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available.
- Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard.
- Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset
Color
Satin Chrome
Color Code
626/US26D
Fire Rated
Yes {Variable}
Finish
Satin Chrome
Dimension
2-1/2" Diameter
Handing
Reversible
Function
One Sided
Strike
Round Corner Deadbolt Strike
Door Range
1-3/8" to 1-3/4"
Cross Bore Size
1-1/2" Bore
Series
B60 Series
Strike Dimension
1-1/8" x 2-3/4"
No of inners
1
Type
Vlookup
Door Thickness
1-3/8" to 1-3/4"
Finish code
626
Material
Zinc
Rose/Escutcheon Design
Round Rose
Latch Faceplate Dimension
1" x 2-1/4"
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Hazardous Material
No
Product Overview
Fire Rated One-Sided Deadbolt Deadlock, Dual Option Latch, Round Corner Strike with Reinforcer, Satin Chrome
Easy installation: One-person project; no extra hands needed.
Grade 1 certified deadbolts that feature an exclusive patented steel strike reinforcer.
