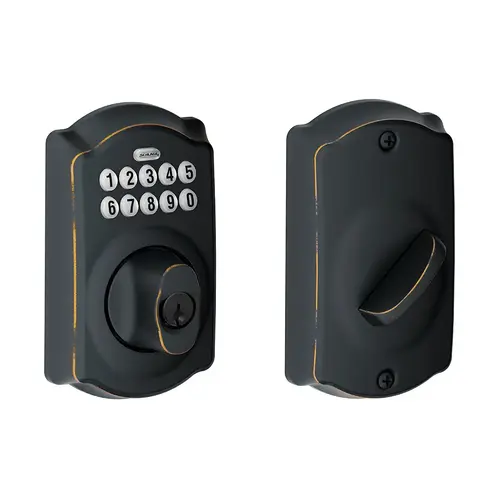

Schlage Residential BE365F-CAM-622 BE365F Camelot Electronic Keypad Deadbolt
Item #: BE365F-CAM-622 by Schlage Residential
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 2
For Use With
Existing, Standard Pre-Drilled Doors; Front Doors; Side and Back Doors; Garage Entry Doors; Residential Single- and Multi-Family Doors
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
3 Year Electronics; Limited Lifetime Mechanical/Finish
Operating Temperature
-35° to 66°C (Outside Escutcheon); -10° to 50°C (Inside Escutcheon)
Color Code
622/US19
Keyway
Schlage C
Function
365-Keypad Deadbolt
Door Thickness
1-3/8" to 1-3/4"
Strike
Round Corner with Reinforcer
Cylinder Type
5-Pin Tumbler
Fire Rated
Yes
Latch Throw
1 Inch
Number of Codes
2 Pre-Set Unique 4-Digit Access Codes, Storage of Up to 19 Access Codes
Finish Description
Matte Black
Product Height
4.22 Inch
Product Width
6.77 Inch
Strike Type
1-1/8" x 2-3/4" Round Corner Reinforcer Strike
ADA Compliant
No
Corner Type
Round Corner
Finish Family
Black
Included Components
(1) Key
Rose/Escutcheon Trim
CAM-Camelot
Door Cross Bore
2.125 Inch
Product Material
Metal
Product Depth
8.39 Inch
Standards
ANSI/BHMA A156.36-2010; ANSI/BHMA A156.40-2015
Faceplate Dimension
1" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Keypad Lock
Battery Used
One 9-Volt Alkaline Battery
Product Projection
2.19 Inch
Features
Deadbolt Thrown From Outside by Keyway Turn After Pressing Schlage Button or by Inside Thumbturn; Deadbolt Retracted From Outside by Entering Valid User Code then Rotating Keyway Turn or by Inside Thumbturn
Product Type
Keypad Lock
Series
BE Series
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
4.22x6.77x8.39"
Sub-Series
BE365F-CAM
Product Overview
Electronic Keypad Deadbolt, UL Listed 3 Hour Fire Door, Camelot Trim, 622 Matte Black Finish
