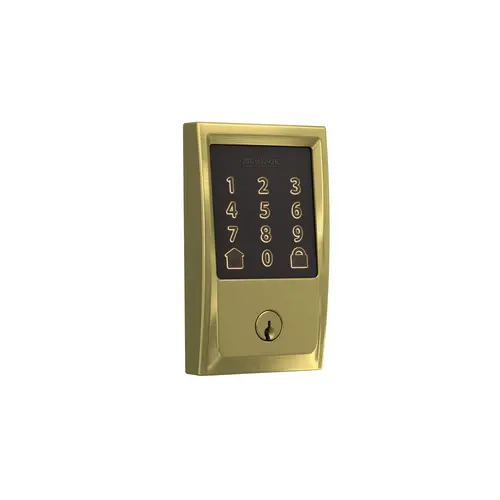

Schlage Residential BE489WBCCEN608 Century Encode Smart Wifi Touchscreen Deadbolt C Keyway with 12351 Latch and 10116 Strike Satin Brass Finish
Item #: BE489WBCCEN608 by Schlage Residential
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Guaranteed to fit on existing, standard pre-drilled doors
- For additional convenience, enjoy voice commands via Alexa or Google Assistant.
- Create and manage up to 100 access codes for trusted friends and family to use with the fingerprint-resistant, capacitive touchscreen with easy one-touch locking.
- Built-in alarm technology senses potential security breaches at the lock.
- Low battery indicator offers weeks of advanced warning for battery replacement.
Finish
Satin Brass
Dimension
3" x 5" Exterior and 3" x 5-1/2" Interior
Backset
Adjustable 2-3/8" or 2-3/4" Backset
Function
Single Cylinder
Strike
10-116 Strike
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore
Series
BE Series
Electronic Communication Type
Wifi
Grade
ANSI/BHMA Grade 2
For Use With
Residential Single Family Doors
Application
Residential Single Family Doors
Warranty
3 Year Electronics; Limited Lifetime Mechanical and Finish
Operating Temperature
Outside Escutcheon: -35° to 66°C; Inside Escutcheon: -10° to 49°C
Color Code
608/US6
Keyway
Schlage C
Door Thickness
1-3/8" to 1-3/4"
Bolt Throw
1 Inch
Cylinder Type
Conventional Cylinder
Latch Throw
1/2 Inch
Number of Codes
Pre-Set, Unique 6-Digit Programming Code; 2 Pre-Set Unique 4-Digit Access Codes; 100 Code Capacity
input type
Touchscreen
Finish Description
Satin Brass
Latch Number
12-351
Latch Type
Triple Option-Round, Square, Drive-In
Product Height
5" (Exterior); 5-1/2" (Interior)
Product Width
3" (Exterior); 3" (Interior)
Strike Number
10-116
Strike Type
1-1/8" x 2-3/4" Round Corner with Reinforcer
Corner Type
Round Corner
Finish Family
Satin Brass
Included Components
(4) Batteries; (1) Key
Rose/Escutcheon Trim
CEN-Century
Door Cross Bore
2.125 Inch
Exterior Dimensions
3" W x 5" H x 0.9" D
Interior Dimensions
3" W x 5-1/2" H x 2.2" D
Low Battery Indicator
Yes
Product Depth
0.9" (Exterior); 2.2" (Interior)
Standards
Commercial Standard Certification: ANSI/BHMA A156.36; Residential Standard Certification: ANSI/BHMA A156.40-2015; UL Listed
Faceplate Dimension
1" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
WiFi Deadbolt
Battery Used
Four AA Alkaline Batteries
Features
Built-in WiFi Allows to Lock/Unlock From Anywhere, Plus Set Up Guest Access Codes for Recurring, Temporary or Permanent Access When Paired With the Schlage Home App or Key by Amazon App; Built-in Alarm Technology; Required 2.4GHz WiFi Network
Product Type
Electronic Auxiliary Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
4.95 x 9.19 x 4.53
Sub-Series
BE489WBC-CEN
Material
Zinc
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical & Finish Warranty & 1 Year Electronics
Keypad Type
Touchscreen
Rose/Escutcheon Design
Century Escutcheon
Strike Dimension
1-1/8" x 2-3/4"
Finish code
608
Latch Faceplate Dimension
1" x 2-1/4"
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
Century Encode Smart Wifi Touchscreen Deadbolt C Keyway with 12351 Latch and 10116 Strike Satin Brass Finish
