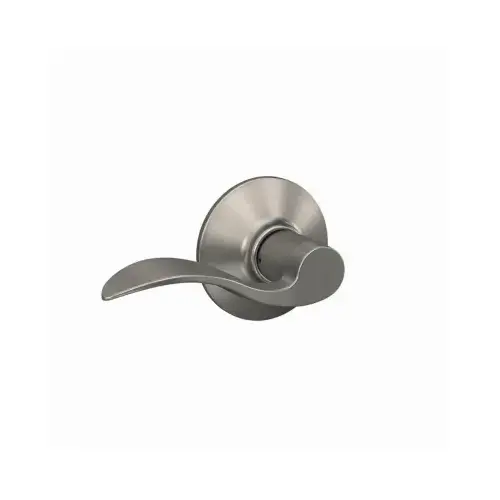

Schlage Residential F10-V-ACC-619 Passage Lockset Accent Satin Nickel 1-3/4" Satin Nickel
Item #: F10-V-ACC-619 by Schlage Residential
UPC #: 043156791422
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Quality materials and construction for exceptional security
- Quality finishes coordinate with plumbing and lighting
- Graded excellent in residential security, durability and finish
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 2
Function
10-Hall/Closet
Door Thickness
1-3/8 to 1-3/4"
Strike
Full Lip 2-1/4 Inch, Radius Corner
Finish Description
Satin Nickel
Latch Type
Spring
Included Components
Passage levers, roses, latch, strike, mounting hardware
Lever Style
ACC-Accent
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Product Type
Cylindrical Lock
Series
F Series
Security Grade
2
Returnable
Yes
Defective Code
A
Commercial or Residential
Residential
Drill Resistant
No
Indoor or Outdoor
Indoor
Maximum Door Thickness
1-3/4"
Style
Accent
Packaging Type
Clamshell
Faceplate Material
Nickel
Minimum Door Thickness
1-3/8"
Trim Rings
No
Knob style
Lever
Door Direction
Left or Right Handed
Material
Zinc
Each Weight
1.820 LB
Velocity
B
Hazardous Material
No
Cylinder Type
5-Pin
Faceplate Size
1 x 2-1/4"
Strike Type
Full Lip Round Corner
Door Handing
Reversible
Strike Size
2-1/4 in H x 1-5/8 in W
Backset Size
2-3/8 x 2-3/4"
Key Type
Non-Keyed
Cross Bore Diameter
2-1/8"
Nomenclature
F10VACC619 *ACC PASS LEVR SNKL
Bolt Throw Size
1/2"
Edge Bore Diameter
7/8"
Application
Residential Single and Multi-Family Doors
Width
6.45
Warranty
Limited lifetime
Height
9.54
Length
2.99
ECCN
EAR99
Country Origin Code
CN
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
619/US15
Bolt Throw
1/2 Inch
ANSI Function
F75
ADA Compliant
YES
Finish Family
Satin Nickel
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Number
10-027
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Wave Lever
Sub-Series
F10-V-ACC
Commercial/Residential
Residential
Throw Length
1/2"
Lock Type
Non-Locking
Dimension
4-1/8" Lever and 2-1/4" Projection with 2-3/4" Diameter Rose
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Plymouth Rose
Door Range
1-3/8" to 1-3/4"
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Accent Lever
No of inners
1
Product Overview
F SeriesLever Locks
The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.
Available Functions: F10/F75 – Hall & Closet*:- Both knobs/levers always unlocked
- Push-button locking
- Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit
- Outside knob/lever fixed. Entrance by key only .
- Inside knob/lever always unlocked
- *Non-keyed Locks
- **Keyed Locks
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Corner with Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Cornerwith Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Round Corner Full Lip Standard
- Square Corner T Strike
- Square Corner Full Lip
- Circular - Adjustable
- Dual Strikes
- (Round & Square Full Lip)
- ANSI Square Corner
- ANSI/BHMA A156 .2-2017 Commercial Grade 2
- ANSI/BHMA A156 .39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- (ACC)
- (AVA)
- (VLA)
- (BIR)
- (BRW)
- (CHP)
- (ELA)
- (FLA)
- (JAZ)
- (LAT)
- (MNH)
- (MER)
- (NBK)
- (SAC)
