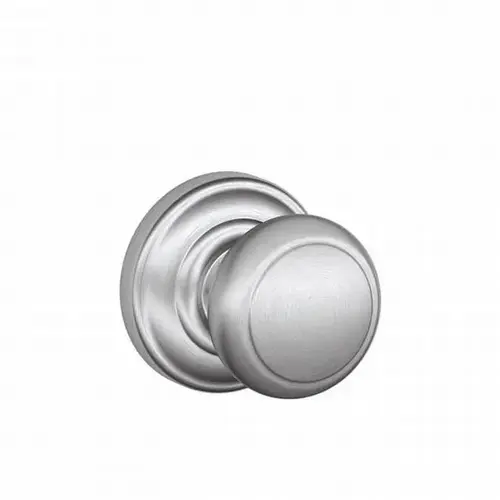

Schlage Residential F10 AND 626 ANDClick To Copy Schlage Residential F10AND626Andover Knob with Andover Knob with Rose Passage Lock with 16080 Latch and 10027 Strike Satin Chrome Finish
Item #: F10 AND 626 AND by Schlage Residential
See reviewsSee reviews
In Stock
$58.89
/eachSAVE UP TO 5.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Easy 3-Step Installation, Only a Screwdriver Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Satin Chrome
Function
Passage
Series
F Series
Design
Andover Knob With Andover Rose
Strike
Round Corner Full Lip Strike
Backset
Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8" or 2-3/4" Backset
Color Code
626/US26D
Handing
Reversible
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Finish Description
Satin Chrome
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Grade
ANSI/BHMA Grade 2
Sub-Series
F10-AND-AND
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Door Cross Bore
2.125 Inch
Product Height
2-3/4 Inch
Application
Residential Single and Multi-Family Doors
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Door Thickness
1-3/8" to 1-3/4"
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
AND-Andover
Product Projection
2-5/16 Inch
Knob style
AND-Andover
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Product Material
Zinc
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Included Components
Passage levers, roses, latch, strike, mounting hardware
Finish Family
Satin Chrome
Product Overview
Andover Knob with Andover Rose Passage Lock with 16080 Latch and 10027 Strike Satin Chrome Finish
