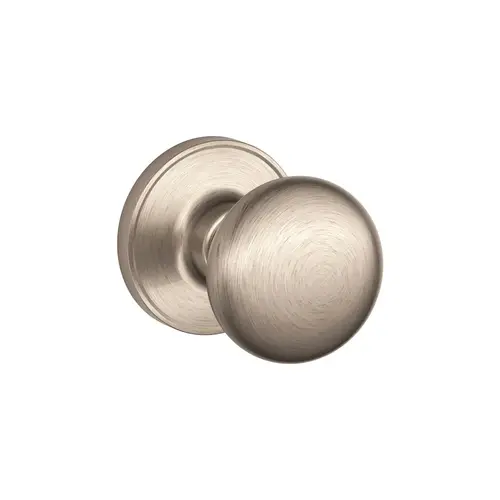

Schlage Residential J10F-STR-619 J10F Stratus Passage Knob Lock, Satin Nickel
Item #: J10F-STR-619 by Schlage Residential
UPC #: 043156863112
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Series
J Series
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Knob style
STR-Stratus
Finish Description
Satin Nickel
Strike
Full Lip 2-1/4 Inch, Radius Corner
Function
10-Hall/Closet
Backset
2-3/8 Inch or 2-3/4 Inch
Grade
ANSI/BHMA Grade 3
Finish
Satin Nickel
For Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
J10F-STR
ADA Compliant
No
Product Height
2-3/4 Inch
Application
Residential Single and Multi Family Doors
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.2-2011
Door Thickness
1-3/8" to 1-3/4"
Product Projection
2-1/2 Inch
Features
Both Knobs/Levers Always Unlocked
Product Material
Zinc
Color Code
619/US15
Strike Type
Radius
Warranty
Lifetime Mechanical; 5 yr Finish
Included Components
Passage Knobs; Roses; Latch; Strike; Mounting Hardware
Finish Family
Satin Nickel
Product Overview
J SeriesKnobs
Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.
Available Functions: J10/F75 - Hall & Closet*:- Both knobs always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside knob
- Inactive trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside when outer knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corne
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
