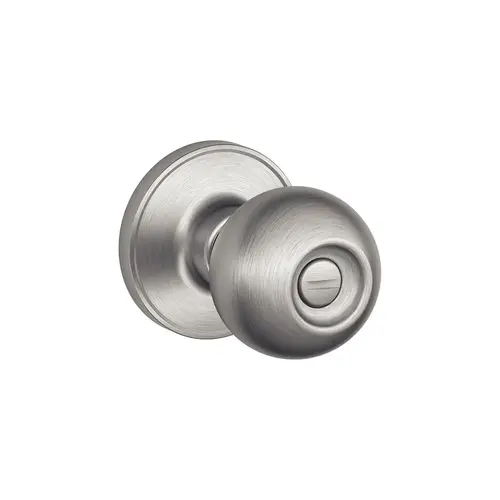

Schlage Residential J40-CNA-630 J40 Corona Privacy Knob Lock
Item #: J40-CNA-630 by Schlage Residential
UPC #: 043156742998
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish Family
Stainless Steel
Included Components
Privacy Knobs; Roses; Latch; Strike; Mounting Hardware
Series
J Series
Warranty
Lifetime Mechanical; 5 yr Finish
Backset
2-3/8 Inch or 2-3/4 Inch
Strike Type
Radius
Color Code
630/US32D
Product Material
Zinc
Features
Knob Design Pairs Well with Transitional Styles Flat Planes and Large Glass Windows; Locks From the Inside with a Turn-Button; Self-Aligning Screw Holes Make Installation Easy and Hassle-Free, Latch Dual Option( Round, Drive in)
Knob style
CNA-Corona
Product Projection
2.56 Inch
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Door Thickness
1-3/8" to 1-3/4"
Standards
ANSI/BHMA A156.2-2010
Function Family
Privacy/Bedroom/Bathroom
Box Dimensions (L x W x H)
2.76x3.23x6.77
Application
Residential Single and Multi Family Doors
Strike
Full Lip 2-1/4 Inch, Radius Corner
Product Height
2-5/8 Inch
Door Cross Bore
2.125 Inch
ADA Compliant
No
Sub-Series
RL_Knob_Locksets_Schlage_Residential_170
Grade
ANSI/BHMA Grade 3
ANSI Function
F76
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Latch Type
Spring
Function
40-Bed/Bath
Knob Style Family
Ball Knob
Door Edge Bore
1 Inch
Finish Description
Satin Stainless Steel
Manufacturer Parent
Allegion
For Door Thickness
1-3/8" to 1-3/4"
Product Overview
J SeriesKnobs
Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.
Available Functions: J10/F75 - Hall & Closet*:- Both knobs always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside knob
- Inactive trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside when outer knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corne
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
