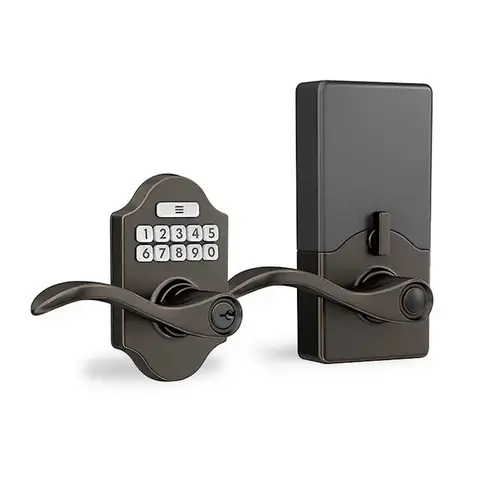

Schlage Residential JFE105-BIL-716 JFE105 Keypad Lever with Billows Trim and Seville Lever Aged Bronze
Item #: JFE105-BIL-716 by Schlage Residential
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aged Bronze
Grade
ANSI/BHMA Grade 3
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
Schlage C
Function
105-Keypad Leverset
Door Thickness
1-3/8" to 2"
Bore Size
2.1250
Cylinder Type
Conventional Cylinder
Finish Description
Aged Bronze
Included Components
(1) Key
Lever Style
SEV-Seville
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
BIL-Billows
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Premium Metal
Product Type
Keypad Lock
Series
JFE Series
Product Depth
2.741" (Exterior); 2.898" (Interior)
Manufacturer Parent
Allegion
For Use With
Residential Single Family Doors
Product Width
4.409" (Exterior); 5.702" (Interior)
Door Edge Bore
1 Inch
Sub-Series
RH_Keypad_Touchscreen_Locks_schlage_residential_20
Lever Style Family
Wave Lever
ADA Compliant
No
Number of Codes
Saves Up to 10 Unique Access Codes, Uses 4-8 Digit Access Codes
Product Height
5.433" (Exterior); 5.457" (Interior)
Function Family
Keypad Lock
Standards
BHMA
Battery Type
(4) AA Alkaline
Features
Backlit Keypad with Silicone Buttons; Withstands Heavy-Duty Impacts; Installs in Minutes with Just a Screwdriver; No Hardwiring Needed
Color Code
643E/US11/716
Warranty
1 yr Electronics; Limited Lifetime Mechanical; 5 yr Finish
Finish Family
Antique Bronze
Product Overview
J SeriesDeadbolts
With premium metal construction and plated keyways, Schlage mechanical and electronic deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.
Available Functions: JD60 - Single Cylinder Deadbolt Lock:- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Bolt automatically deadlocks when fully thrown
- Deadbolt thrown or retracted from interior side only
- Deadbolt thrown or retracted from interior side only
- *Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- 16-068 - Dual Option (Round, Drive-in) - Standard
- 10-267 - One Radius Deadbolt Full Lip Strike (10-102)
& One Radius Deadbolt Strike (10-103) - Standard - 10-099 - Square Strike Plate & Strike Frame Reinforcer
- ANSI/BHMA A156.36-2010 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch, 1" housing diameter, 1" throw
- 1" x 2 1/4" round corner and radius corner, full lip
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Deadbolts tab
