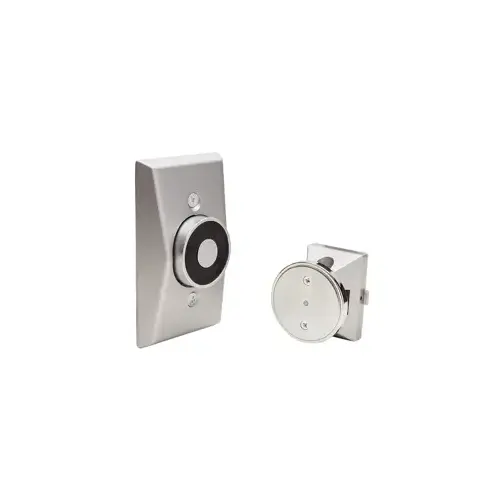

LCN SEM7820 ALClick To Copy Low Profile Single Side Floor Mount Hold Open Magnet 689 Aluminum Finish
Item #: SEM7820 AL by LCN
See reviewsSee reviews
In Stock
$810.13
/eachSAVE UP TO 81.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
Grade 1
Color
Aluminum Painted
Color Code
689/US28
Function
Electrically Locked (Fail Safe)
BAA Qualified
Yes
Package Volume
0
Amp Draw
.020A at 24VACDC/120VAC, .030A at 12VDC
Holding Force
35 lbs.
Operating Voltage
12VDC/24VACDC/120VAC
Package Qty
1
Armature Size
1-5/8 In. Projection
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Alternate Part Number-1
181306
Finish
Aluminum
Dimension
4-9/16" X 5-1/8"
Hold Open
Yes
Fire Rated
Yes
Magnet Size
4-9/16" X 5-1/8"
Hazardous Material
No
Series
SEM 7800 Series
Product Overview
Magnetic Door Holder, Floor Mount, Low Profile Armature, Aluminum
The Sentronic SEM7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the doors. A choice of floor, recessed wall or surface wall mounted magnets are available.
All SEM series magnets are UL listed for smoke barrier or labeled fire doors.
Tested and certified under ANSI Standard A156.15. heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door.
SEM 7820 Magnet Features
- Tri-voltage design with 35lbs. of holding force
- Floor-mounted
- Now available armature extensions from LCN
- SEM 7820 magnets are shipped with die cast housing, cover, armature(s) and WMS screw pack
- UL listed for smoke barrier or labeled fire doors
- SEM 7820 available in Aluminum and Dark Bronze finishes
SEM 7830 Magnet Features
- Tri-voltage design with 35lbs. of holding force
- Surface wall-mounted
- Now available armature extensions from LCN
- SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- Suitable for use in pocket door installations
- UL listed for smoke barrier or labeled fire doors
- SEM 7830 available in Aluminum and Dark Bronze finishes
SEM 7840 Magnet Features
- Tri-voltage design with 35lbs. of holding force
- Low profile recessed wall-mounted
- Now available armature extensions from LCN
- SEM 7840 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- Suitable for use in pocket door installations
- UL listed for smoke barrier or labeled fire doors
- SEM 7840 available in Aluminum and Dark Bronze finishes
SEM 7850 Magnet Features
- Tri-voltage design with 35lbs. of holding force
- Standard profile recessed wall-mounted
- Now available armature extensions from LCN
- SEM 7850 magnets are shipped with die cast housing, cover, armature and WMS screw pack
- Suitable for use in pocket door installations
- UL listed for smoke barrier or labeled fire doors
- SEM 7850 available in Aluminum and Dark Bronze finishes
