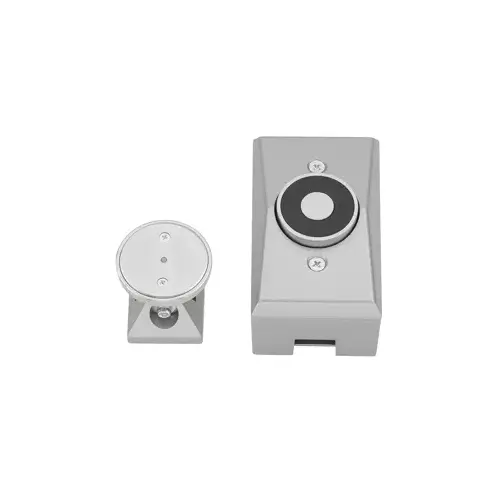

LCN SEM7830 AL Low Profile Wall Mount Hold Open Magnet 689 Aluminum Finish
Item #: SEM7830 AL by LCN
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Package Volume
0
Amp Draw
.020A at 24VACDC/120VAC, .030A at 12VDC
Color
Aluminum Painted
Function
Surface Wall Mount
Grade
Grade 1
Operating Voltage
12VDC/24VACDC/120VAC
Package Qty
1
Color Code
689/US28
Armature Size
1-5/8 In. Projection
Holding Force
35 lbs.
BAA Qualified
Yes
Mount
Wall Mount
Finish Description
Aluminum Painted
Product Type
Electromagnetic Holder/Release
Series
SEM7800 Series
Finish
Aluminum Painted
Product Height
4-5/8" (Wall Mount Component); 2-3/8" (Door Mount Component)
Product Length
2-13/16" (Wall Mount Component); 1-11/16" (Door Mount Component)
Product Width
2-1/2" (Wall Mount Component); 1-5/8" (Door Mount Component)
ADA Compliant
No
Finish Family
Aluminum
Standards
ANSI/BHMA 156.15; UL Listed
Product Projection
4-1/8 Inch
Features
Magnets are Fail-Safe Until the Electrical Current is Interrupted; Performs Manually Under Alarm Conditions Until Power Returns
Voltage
12 VDC
Mounting Type
Surface Wall
Warranty
2 Year
Manufacturer Parent
Allegion
Sub-Series
SEM7830-AL
Alternate Part Number-1
153670
Dimension
2-13/16" x 4-5/8" x 2-1/2"
Fire Rated
Yes
Magnet Size
2-13/16" x 4-5/8" x 2-1/2"
Hazardous Material
No
Product Overview
SEM 7830 MagnetDie cast housing, Surface wall mounted.
The Sentronic® SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.
All SEM Series magnets are UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15.
Features:- Tri-voltage design with 35 lbs. of holding force.
- Now available armature extensions from LCN
- SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack.
- SEM 7830 available in Aluminum and Dark Bronze finishes only.
- Suitable for use in pocket door installations.
- UL listed for smoke barrier or labeled fire doors.
