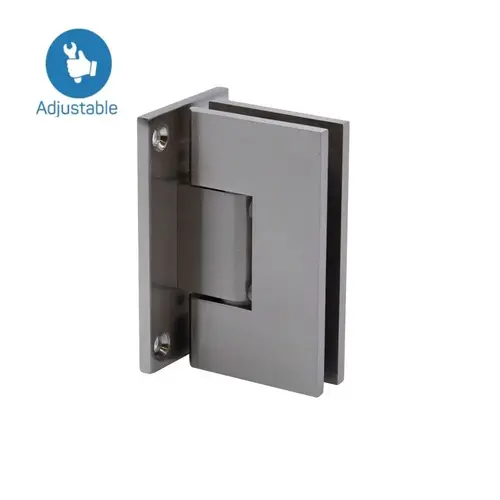

SGS IMP-110-AJ-TTM Wall to Glass Full Back Plate Adjustable Hinge Titanium Chrome

Item #: IMP-110-AJ-TTM by Structure Glass Solutions

See reviewsSee reviews
See reviews summary

$76.52

/each
SAVE UP TO 7.65
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Product Overview

Adjustable to Angle Up to 90 Degrees without Removing Door

Use Monolithic Tempered Glass

Available in Several Beautiful Finishes

5 Year Warranty

SGS Imperial Hinges can accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 degrees in and 90 degrees Out

Closing Type: Self-Centering when within 15 degrees of Closed Position or Adjustable to Angle Up to 90 Degrees without Removing Door

Cut-Out Required Includes: Gaskets and Screws
