Single Cylinder Deadbolt, Grade 3. 5-Pin C Keyway KA4. Adjustable 2-3/8" to 2-3/4" Backset. Fits on 1-3/8" to 1-3/4" Doors. 716 Aged Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

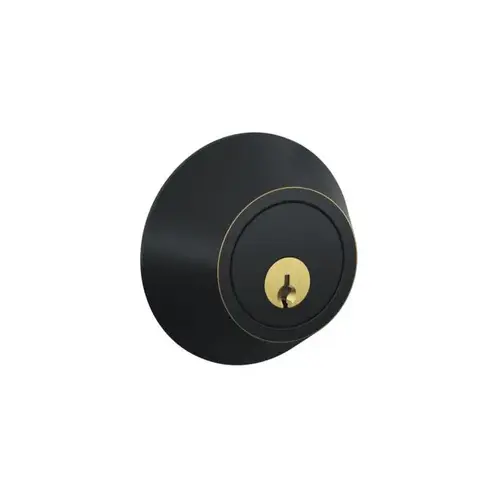

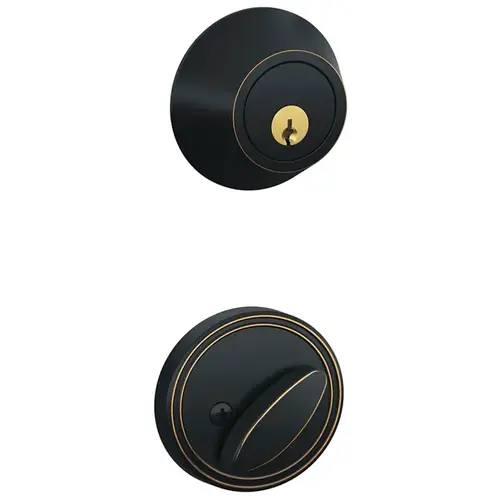

Schlage Residential JD60 716 Single Cylinder Deadbolt, Grade 3. 5-Pin C Keyway KA4. Adjustable 2-3/8" to 2-3/4" Backset. Fits on 1-3/8" to 1-3/4" Doors. 716 Aged Bronze

Item #: JD60 716 by Schlage Residential

UPC #: 043156895847

See reviewsSee reviews
See reviews summary
In Stock

$29.45

/each
SAVE UP TO 2.94

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3108 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single Cylinder Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
  • Applications: Residential single and multi family doors
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Backset: Universal deadolts fit 2-3/8" or 2-3/4" backset
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty
  • Certifications: Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade CCC in Security, Durability and Finish
  • Door thickness range: Door thickness range: 1-3/8" to 1-3/4" standard
  • Keying: 5-pin, C keyway with 2 keys
  • UL Listed: Available in boxpack for JD60, JD80 and JD81

Finish

Aged Bronze

Function

60-Single Cylinder Deadbolt

Series

JD Series

Handing

Reversible

Strike

Dual Radius Deadbolt and Full Lip

Backset

Dual Option-Round, Drive-In

Color

Antique Bronze

Color Code

643E/US11/716

Grade

ANSI/BHMA Grade 3

Keyway

Schlage C

Cylinder Type

5-Pin

Finish Description

Aged Bronze

Keyblank Grouping

SCHR-C-5-1

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Projection

1.0000

Door Thickness

1-3/8" to 1-3/4"

Bore Size

2.1250

Product Height

3.15 Inches

Product Length

3.74 Inches

Included Components

Deadbolt; Roses; Latch; Strike; Mounting Hardware

Door Cross Bore

2.125 Inch

Keying Charges

Residential-Conventional

Product Material

Zinc

Box Length

3.7400

Box Width

3.7400

Box Height

3.1500

Style

Round

Application

Residential Single- and Multi-Family Doors

Warranty

Lifetime Mechanical and 5 yr Finish

ADA Compliant

No

Finish Family

Antique Bronze

Standards

ANSI/BHMA A156.36-2010

Function Family

Single Cylinder Deadbolt

Manufacturer Parent

Allegion

Door Edge Bore

1 Inch

Box Dimensions (L x W x H)

3.15x3.74x3.74

Sub-Series

RL_Deadbolts_Schlage_Residential_16

Features

Deadbolt Thrown or Retracted by Key From Outside or by Inside Turn Unit; Bolt Automatically Deadlocks When Fully Thrown; Dual Option Latches

Strike Type

Radius Corner Round Corner

Strike Size

1 x 2-1/4"

Backset Size

2-3/8 x 2-3/4"

Key Type

Keyed

Keyway type

C

Nomenclature

JD60716 LOCK SNGL CYL AGED BRZ

Type

Single Cylinder

Alternate Part Number-1

167957

Product Overview
LOCK DEADBOLT SNGL CYL AGEDBRZ
Specifications:

Includes: (2) Keys

Suitable for: 1-3/8 to 1-3/4 in Thick Doors

Easy installation; fits all standard door preparations; deadbolt thrown or retracted by key from outside or by inside turn unit; can be rekeyed to match existing locks or other locks purchased.
