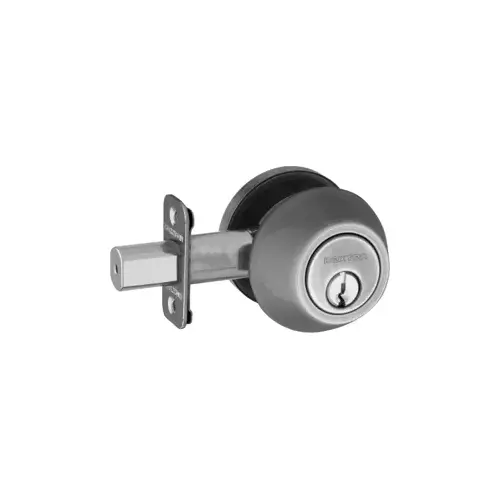

Schlage Residential JD60 619 Deadbolt, Satin Nickel, Metal, C Keyway, Re-Key Technology: Traditional, Residential, Grade 3 Grade
Item #: JD60 619 by Schlage Residential
UPC #: 043156771813
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Single Cylinder Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Can be rekeyed to match existing locks or other locks purchased
- Applications: Residential single and multi family doors
- Backset: Universal deadolts fit 2-3/8" or 2-3/4" backset
- Fits all standard door preparations
- Easy to install
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Keying: 5-pin, C keyway with 2 keys
- UL Listed: Available in boxpack for JD60, JD80 and JD81
Finish
Satin Nickel
Function
60-Single Cylinder Deadbolt
Series
JD Series
Handing
Reversible
Strike
Dual Radius Deadbolt and Full Lip
Backset
Dual Option-Round, Drive-In
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 3
Keyway
Schlage C
Cylinder Type
5-Pin Standard Cylinder
Finish Description
Satin Nickel
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Projection
1.0000
Door Thickness
1-3/8 to 1-3/4"
Bore Size
2.1250
Product Height
3.15 Inches
Product Length
3.74 Inches
Included Components
Deadbolt; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
3.7400
Box Width
3.7400
Box Height
3.1500
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Sub-Series
RL_Deadbolts_Schlage_Residential_16
ADA Compliant
No
Application
Residential Single- and Multi-Family Doors
Style
Round
Box Dimensions (L x W x H)
3.15x3.74x3.74
Function Family
Single Cylinder Deadbolt
Standards
ANSI/BHMA A156.36-2010
Features
Deadbolt Thrown or Retracted by Key From Outside or by Inside Turn Unit; Bolt Automatically Deadlocks When Fully Thrown; Dual Option Latches
Warranty
Lifetime Mechanical and 5 Years Finish
Finish Family
Satin Nickel
Cylinder Included
Yes
Strike Size
1 x 2-1/4"
Alternate Part Number-1
135315
Latch Bolt Type
Deadbolt
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Deadbolt
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Round Corner, Square Corner
Latch Bolt Throw
1"
Door Thickness Max
1-3/4"
Knob/Lever Style
Inside Thumbturn
Material
Metal
Dimensions
1 in L x 2.56 in W x 2.56 in H
Faceplate Size
1 x 2-1/4"
Latch Type
Deadbolt Latch
Strike Type
Square Corner
Commercial/Residential
Residential
Backset Size
2-3/8 2-3/4"
Key Type
SC1
Keyway type
C
Security Grade
Grade 3
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
JD60619 LOCK SNGL CYL SAT NIC
Backset Type
Adjustable
Edge Bore Diameter
1"
Re-Key Technology
Traditional
Projection Size
1"
Interior Locking
Yes
Height
3.15
Length
3.74
Width
3.74
Dimension
2-5/8" Diameter and 1" Projection
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
LOCK DEADBOLT SNGL CYL SAT NIC
Specifications:
Specifications:
Application: For residential single and multi-family doors
Includes: Mounting Hardware
Single cylinder deadbolt in satin nickel.
