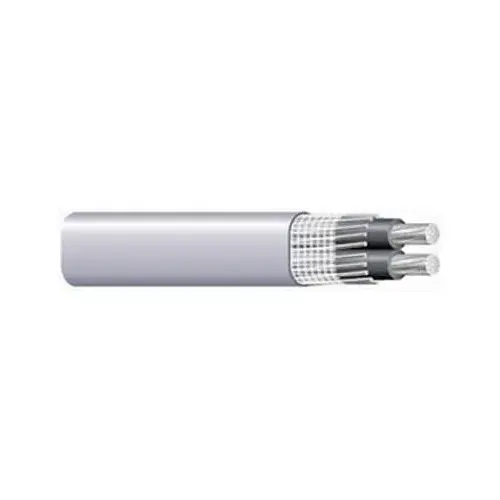

Service Entrance Cable, 3 -Conductor, Aluminum Conductor, PVC Insulation, Gray Sheath

Roll over image to zoom in

Southwire 13093002 Service Entrance Cable, 3 -Conductor, Aluminum Conductor, PVC Insulation, Gray Sheath

Item #: 13093002 by SOUTHWIRE RETAIL SALES

UPC #: 032886581106

See reviews See reviews

In Stock $567.78 /each

SAVE UP TO 56.78

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Diameter

0.88 in.

Length

32.21

Wire Gauge

4/0-4/0-4/0

Certifications

Made in the USA, UL

Grounding

YES

Wire/Cable Material

Aluminum

Color

Gray

UL Listed

Yes

Wire Length

100 ft.

Conductor Gauge

4 Ga.

Direct Burial

Yes

Insulation Material

PVC

Stranded or Solid

Stranded

Indoor or Outdoor

Outdoor

Amp Rating

200 amps

Cable or Wire Type

Service Entrance

Defective Code

A

Each Weight

104.000 LB

Flame Retardant

Yes

Gauge/Conductors

4/0-4/0-4/0

Ground Wire Gauge

4 Ga.

Hazardous Material

No

Jacket Material

Aluminum

Number of Conductors

3

Returnable

Yes

Sunlight/UV Resistant

Yes

Temperature Rating

90 °F

Velocity

X

Wet Location Use

Y

Product Type

Cable

Alternative UPC

098359581103

Width

7.23

Brand

Southwire

Conductor Material

Aluminum

Product Height (in.)

6.4

Product Length (in.)

27.6

Product Width (in.)

28.9

Wire/Cable Type

SEU

Height

32.21

Grounded

Y

Product Weight (lb.)

75.65

Cord Jacket Color

Grey

Max Amps

205

Total Wire Length (ft.)

100

Country Origin Code

US

Solid or Stranded

Stranded

Application

For conveying power from the service drop to the meter base and from the meter base to the distribution panel board

Type

SEU

Operating Temperature

90 deg C

Sheath Color

Gray

Nomenclature

4/0-4/0-4/0X100' ALUM SEU WIRE

Conductor Insulation

PVC

Current Rating

205 A

CABLE SEU CU AL4/0-4/0-4/0X100
Specifications:

Application: For conveying power from the service drop to the meter base and from the meter base to the distribution panel board

Cross-linked polyethylene (XLPE) insulation. Insulated conductors laid parallel with bare ground wires helically wound around core. Covered with a reinforced binder tape. Sunlight resistant gray PVC jacket. Above ground service entrance and branch circuit. Maximum operating temperature of phase conductors not to exceed 90 deg C in wet or dry locations, 600 V. UL listed. Amp capacities listed are at 30 deg C/85 deg F.
