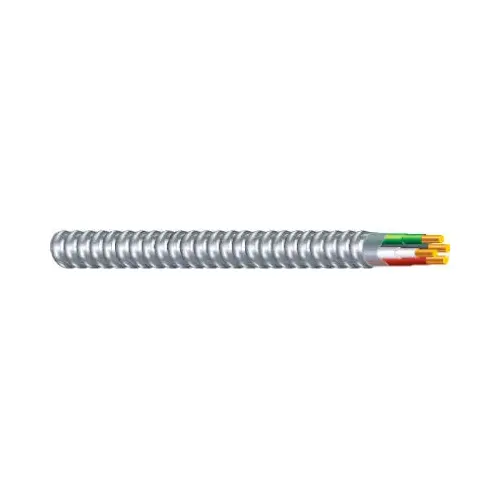

Southwire 68580021 Armorlite Armored Cable, 12 AWG Cable, 2 -Conductor, Copper Conductor, THHN/THWN Insulation
Item #: 68580021 by SOUTHWIRE RETAIL SALES
UPC #: 032886345418
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Fished or embedded in plaster
- Concealed or exposed installations
- Environmental air-handling spaces per NEC 300.22©
- As aerial cable on a messenger
- Installation in cable tray and approved raceways
- Lightweight aluminum interlocked armor
Wet Location Use
No
Flame Retardant
Yes
Returnable
Yes
Direct Burial
No
Wire Length
25 ft.
UL Listed
Yes
Conductor Gauge
12 Ga.
Sunlight/UV Resistant
Yes
Defective Code
A
Color
Black/Green/White
Jacket Material
Aluminum
Gauge/Conductors
12/2
Indoor or Outdoor
Indoor
Cable or Wire Type
Aluminum Armored MC
Number of Conductors
2
Amp Rating
20 amps
Temperature Rating
90 °F
Ground Material
Copper
Product Type
Cable
Conductor Material
Copper
Stranded or Solid
Solid
Each Weight
2.640 LB
Velocity
B
Hazardous Material
No
Height
2.80
Length
25"
Width
8.50
ECCN
EAR99
Country Origin Code
US
Application
For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
Type
Metal Clad
Operating Temperature
90 deg C
Sheath Diameter
0.527"
Stranded/Solid
Solid
Nomenclature
68580021 12/2X25 MC CABLE
Conductor Insulation
THHN/THWN
Cable Size
12 AWG
Current Rating
20 A
Specifications:
Application: For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
Includes: Aluminum Armor
Pre-installed conductors within an overall protective metallic interlocked armor. 45% lighter than steel MC cable. Cable reverse wound for ease of pulling and installation. Conductors solid bare annealed copper per ASTM B-3, stranded copper stranding per ASTM B-8 for conductor. Conductor insulation rated 90 deg C dry, 75 deg C wet at 600 V. Conductor insulation is flame retardant, heat-resistant PVC with flame, oil- and gasoline-resistant nylon jacket. General applications such as branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential construction/facilities, power, lighting, control and signal circuits, concealed or exposed installations, installed in raceway/conduit, fished or embedded in plaster, installed in cable tray and as aerial cable on a messenger. UL classified 1, 2 and 3 hrs through penetration firestop systems W-L-3110, W-L-3113, W-L-31120, W-L-3121, C-A-J-3115, C-A-J-3140, C-A-J-3142, C-A-J-3202, C-A-J-4065 and C-A-J-4066. UL listed.
