Armorlite Armored Cable, 12 AWG Cable, 2 -Conductor, 50 ft L, Copper Conductor, PVC Insulation Black/Green/White

Roll over image to zoom in

Southwire 68580022Click To Copy Armorlite Armored Cable, 12 AWG Cable, 2 -Conductor, 50 ft L, Copper Conductor, PVC Insulation Black/Green/White

Item #: 68580022 by SOUTHWIRE RETAIL SALES

UPC #: 032886345432

See reviewsSee reviews
In Stock

$53.13

/each
SAVE UP TO 5.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1328 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Fished or embedded in plaster
  • Concealed or exposed installations
  • Environmental air-handling spaces per NEC 300.22©
  • As aerial cable on a messenger
  • Installation in cable tray and approved raceways
  • Lightweight aluminum interlocked armor

Wet Location Use

Yes

Flame Retardant

Yes

Returnable

Yes

Direct Burial

Yes

Wire Length

50 ft.

UL Listed

Yes

Conductor Gauge

12 Ga.

Sunlight/UV Resistant

Yes

Defective Code

A

Color

Black/Green/White

Jacket Material

Aluminum

Gauge/Conductors

12/2

Indoor or Outdoor

Indoor

Cable or Wire Type

Aluminum Armored MC

Number of Conductors

2

Amp Rating

20 amps

Temperature Rating

90 °F

Ground Material

Aluminum

Product Type

Cable

Conductor Material

Copper

Stranded or Solid

Solid

Each Weight

5.290 LB

Velocity

B

Hazardous Material

No

Height

3.25

Length

50"

Width

9.00

ECCN

EAR99

Country Origin Code

US

Application

For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings

Type

Metal Clad

Operating Temperature

90 deg C

Sheath Diameter

0.475"

Stranded/Solid

Solid

Nomenclature

68580022 12/2X50 MC CABLE

Conductor Insulation

PVC

Cable Size

12 AWG

Current Rating

20 A

Gauge

12 AWG

Length (ft)

50

Certification

UL Listed

Conductor Type

Armored

Product Overview
CABLE ARMORED METAL 12/2 50FT

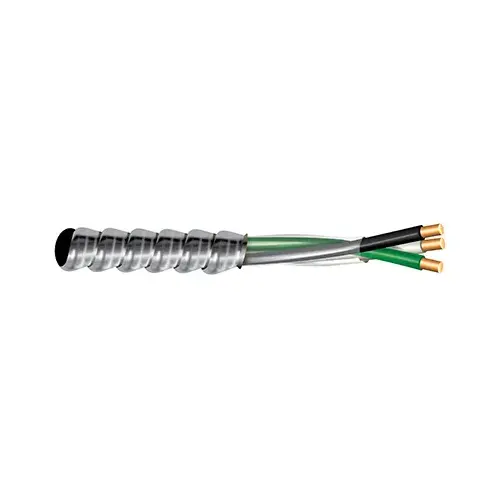

Pre-installed conductors within an overall protective metallic interlocked armor. 45% lighter than steel MC cable. Cable reverse wound for ease of pulling and installation. Conductors solid bare annealed copper per ASTM B-3, stranded copper stranding per ASTM B-8 for conductor. Conductor insulation rated 90 deg C dry, 75 deg C wet at 600 V. Conductor insulation is flame retardant, heat-resistant PVC with flame, oil- and gasoline-resistant nylon jacket. General applications such as branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential construction/facilities, power, lighting, control and signal circuits, concealed or exposed installations, installed in raceway/conduit, fished or embedded in plaster, installed in cable tray and as aerial cable on a messenger. UL classified 1, 2 and 3 hrs through penetration firestop systems W-L-3110, W-L-3113, W-L-31120, W-L-3121, C-A-J-3115, C-A-J-3140, C-A-J-3142, C-A-J-3202, C-A-J-4065 and C-A-J-4066. UL listed.
