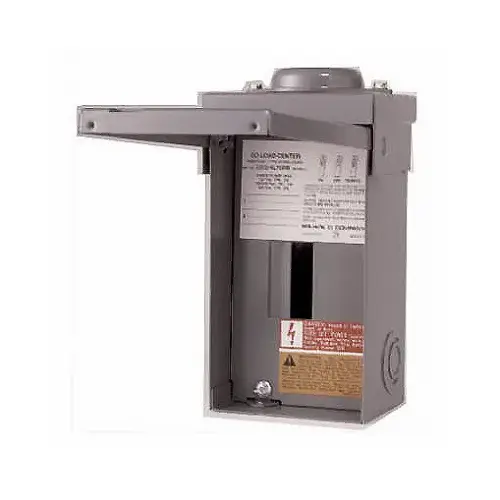

Square D QO24L70RBCP QO Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting, Gray
Item #: QO24L70RBCP by SCHNEIDER ELECTRIC USA INC
UPC #: 047569804380
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Thermoplastic interior is among the most rugged in the industry
- Indoor and outdoor versions
- Separate flush or surface mount covers
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Includes an outdoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
Height
4.60
AMPS
70 amps
Mounting Type
Plug
Volts
120/240 V
Depth
4"
Width
5.70
UL Listed
Yes
Number of Spaces
2
Packaging Type
Boxed
Indoor or Outdoor
Outdoor
Breakers Included
Yes
Circuit Protection Type
Main Lug
Defective Code
A
Each Weight
4.900 LB
Hazardous Material
No
Maximum Number of Circuits
4 circuits
Returnable
Yes
Sub Brand
QO
Velocity
D
Product Type
Main Lug Load Center
Length
11.80
ECCN
EAR99
Country Origin Code
MX
Finish
Baked Enamel
Color
Gray
Bus Bar Material
Aluminum
Number of Circuits
4
Breaker/Load Center Type
Main Lug
Enclosure Type
NEMA 3R
Current Rating
70 A
Cable Size
12 to 3 14 to 4 AWG
Interrupt Rating
65 kA
Nomenclature
QO24L70RBCP 70A MAINLUG PANEL
Cover/Lid Type
Surface
Number of Phases
1
Wiring Configuration
3-wire
Main lug indoor load center, 70 A, 2 space/4 circuits. Intended for overhead or underground feed. 1-1/4 in maximum knockouts in the top and bottom end walls. NEMA 3R enclosure for outdoor use with a factory included cover. Copper bus for conductivity. UL listed.
