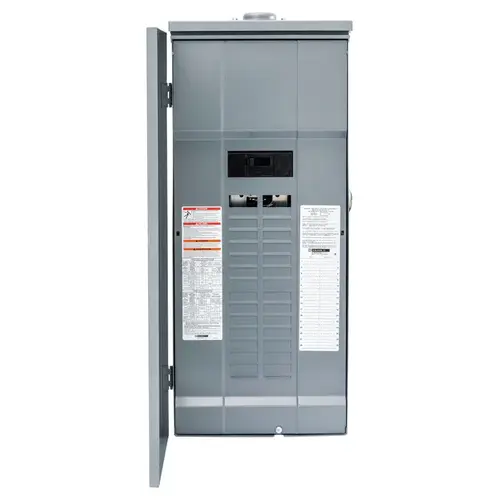

Square D HOM3060M200PRB Main Breaker Load Center HomeLine 200 amps 120/240 V 30 space 60 circuits Wall Mount
Item #: HOM3060M200PRB by SCHNEIDER ELECTRIC USA INC
Brand: Square D
UPC #: 785901978077
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Returnable
Yes
UL Listed
Yes
Height
33.8"
Defective Code
A
Breakers Included
No
Number of Spaces
30 space
Maximum Number of Circuits
60 circuits
Width
14.8"
Circuit Protection Type
Single Pole
Sub Brand
HomeLine
Mounting Type
Wall Mount
Indoor or Outdoor
Outdoor
Volts
120/240 V
Packaging Type
Boxed
Depth
4.5"
Product Type
Main Breaker Load Center
AMPS
200 amps
Each Weight
38.700 LB
Velocity
D
Hazardous Material
No
Voltage
120/240
Wire Size
#4-250 AWG/kcmil (Copper, Aluminum)
Amperage
200
Phase
Single
Certification
UL Listed
Enclosure Type
Raintight
Series
Homeline
Mount Type
RB
Max Number of Circuits
60
Size (W x H x D)
14.76×4.53×33.78
Weight (lb)
38.76
Type
Load Center
Range
Homeline
Load Center Type
PoN Convertible Mains (breaker)
Cover Type
Surface Cover
Electrical Connection
Lugs
Enclosure Material
welded galvannealed steel
Product Depth
4.53 in
Product Width
14.76 in
Spaces
30
Product Certification
UL listed file E-6294
Relationship Type
Compatible relationship
Bus Rated Current
225.0 A
China Rohs In Scope
No
China Rohs Label
1
Device Composition
grounding bar (ordered separately)
Energy Efficiency Optimized
FALSE
Environmental Disclosure
ENVPEP2212003EN
Eoli Availability Display
No need of specific recycling operations
Eu Rohs Directive
Compliant
Green Premium Status For Reporting
Green Premium product
Packaging Without Single Use Plastic
No
H And D Domain
Safety
H And D Enrichment Class 4
Single-phase convertible mains indoor load center
Mercury Free
Yes
Market Segmentation
Residential
H And D Enrichment Class 3
Load centers (equipped)
Legacy Weee Scope
In
Line Rated Current
200 A
H And D Enrichment Assignment
no
Packaging Made With Recycled Cardboard
No
Rohs Eur Conformity Date
2531
Without Single Use Plastic
No
Rohs Exemption Information
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Tier
1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Use Carbon Footprint
0.087341
Sustainable Packaging
No
With Recycled Cardboard
No
Take Back
No
Short Circuit Current
22 kA
Recycled Metal Content At Cr Level
0%
Wd Status
1 - GSC certified
Product Overview
The Square D Homeline 200 Amp 30-Space 60-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
