Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.
Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

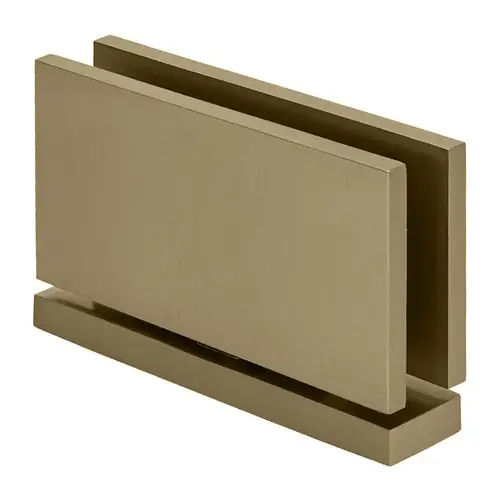

CRL SRCAR01BBRZ Brushed Bronze Senior Cardiff Series Hinge
Item #: SRCAR01BBRZ by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
- Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
- Square Corners for a Sharp, Traditional Look
- Use Monolithic Tempered Glass
- Adaptable to CRL Deluxe Header System
- Stocked in Many Popular Hardware Finishes
Height
2-5/8 in. (67 mm)
Finish
Brushed Bronze
Mounting Type
Head & Sill Mount
Material
Brass
Width
4-3/4 in. (121 mm)
Glazing Thickness
1/2 in. (12 mm)
Maximum Door Weight
145 lbs. (65.8 kg)
Maximum Door Width
36 in. (914 mm)
Finish/Color
Brushed Bronze
Series
Senior Cardiff
Self-Centering
Yes
Product Overview
CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.
Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.
Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
