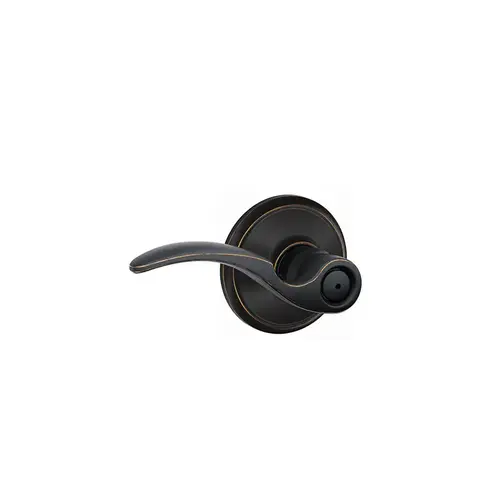

Schlage Residential F40 STA 716Click To Copy St Annes Lever Privacy Lock with 16080 Latch and 10027 Strike Aged Bronze Finish

Privacy Function, St. Annes Lever, 716 Aged Bronze Finish
F SeriesLever Locks

The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.

Available Functions: F10/F75 – Hall & Closet*:

• Both knobs/levers always unlocked

F40/F76 – Bed & Bath*:

• Push-button locking
• Can be opened from outside with small circular tool
• Turning inside knob/lever releases button

F170 – Non-turning*:

• Non-turning trim for one side of door
• Used for door pull or as matching inactive trim

F51A/F81 – Keyed Entry**:

• Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
• Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit

F80/F86 – Storeroom Lock**:

• Outside knob/lever fixed. Entrance by key only .
• Inside knob/lever always unlocked

• *Non-keyed Locks
• **Keyed Locks

Keyed Latches - Dead Latches: 16-086:

• Dual Option (Round, Drive-in) Standard

16-207:

• Square Corner

16-211:

• Triple Option
• (Round, Square, Drive-in)

16-203:

• UL Listed Square Corner with Firecup

16-204:

• UL Listed Round Corner with Firecup

16-126:

• 5" Backset, Square Corner

Non Keyed - Spring Latches: 16-080:

• Dual Option (Round, Drive-in) Standard

16-200:

• Square Corner

16-210:

• Triple Option
• (Round, Square, Drive-in)

16-203:

• UL Listed Square Cornerwith Firecup

16-204:

• UL Listed Round Corner with Firecup

16-126:

• 5" Backset, Square Corner

Strikes: 10-027:

• Round Corner Full Lip Standard

10-001:

• Square Corner T Strike

10-026:

• Square Corner Full Lip

10-058:

• Circular - Adjustable

10-063:

• Dual Strikes
• (Round & Square Full Lip)

10-025:

• ANSI Square Corner

Standard Features / Configurations: Certification:

• ANSI/BHMA A156 .2-2017 Commercial Grade 2
• ANSI/BHMA A156 .39-2015 Residential Grade AAA
• Available UL Listed for 3-hour fire door

Latch:

• 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch

Strike:

• 1 5/8" x 2 1/4" radius corner, full lip, no box

Backset:

• Dual backset latches, fits either 2 3/8" or 2 3/4" backsets

Cylinder:

• 5-Pin, C keyway, keyed alike (KA4)

Door Range:

• 1 3/8" - 1 3/4"

Keys:

• Two per lock, 5-pin, C section

• Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.

Finish Codes and Descriptions: 505:

• Lifetime Bright Brass

605:

• Bright Brass (US3)

608:

• Satin Brass

609:

• Antique Brass (US5)

613:

• Oil-Rubbed Bronze (US10B)

618:

• Polished Nickel

619:

• Satin Nickel (US15)

620:

• Antique Pewter (US15A)

621:

• Distressed Nickel

622:

• Matte Black (US19)

625:

• Bright Chrome (US26)

626:

• Satin Chrome (US26D)

716:

• Aged Bronze

• Non-standard finishes are not available.

Available Styles: Accent:

• (ACC)

Avanti:

• (AVA)

Avila:

• (VLA)

Birmingham:

• (BIR)

Broadway:

• (BRW)

Champagne:

• (CHP)

Elan:

• (ELA)

Flair:

• (FLA)

Jazz:

• (JAZ)

Latitude:

• (LAT)

Manhattan:

• (MNH)

Merano:

• (MER)

Northbrook:

• (NBK)

Sacramento:

• (SAC)
