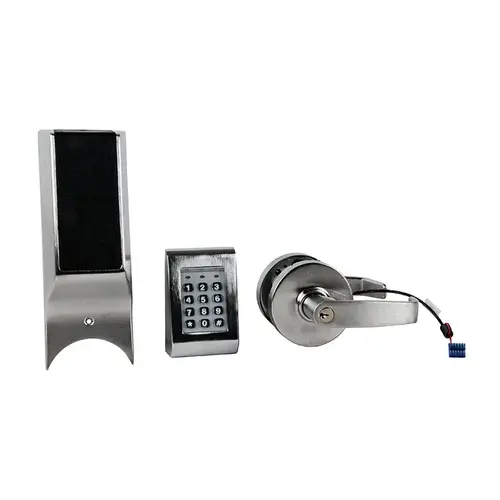

Sargent 28-KP10G77 LL 26D 10 Line G77 Keypad Lever Lockset

KP SeriesStandalone Access Control Products

Designed for openings that require standalone, basic authorized entry capabilities, KP Series keypad locks are battery-powered and self-contained to allow for easy, individual keypad programming according to the user’s opening requirements and/or preferences. Combining the non-volatile memory of a motor-driven microprocessor-based controller with the physical security of ANSI/BHMA Grade 1 mechanical hardware, KP Series locks provide the security and functionality needed to locally control access to storerooms, offices, stairwells, conference rooms and restrooms. The Keypad Operated Products motorized 8200 Series Mortise Lock has a clean, crisp design and is available with the SARGENT Studio Collection, Coastal Series and traditional lever designs along with a full array of finishes. The mortise locks offer economical access control solutions for stand-alone applications. The mortise locks are available with or without deadbolt and with or without cylinder override. KP Series mortise locks feature Ecoflex™ technology for improved battery life.

Features:

• Non-volatile memory

• All programming at keypad

• Keypad made of ultraviolet stable textured material

• Operating temperature for keypad: 4°F – 140°F

• Adjustable unlock time

• Use on exterior doors with weatherseal gasket and shroud

• UL Listed for fire doors (12 - required for KP8800/8900 Series)

• UL Listed to Canadian safety standards

• Built-in remote “Request to Enter” requires wire harness (52-2071)

• Low battery indication - four chirps after code entry

• Operates with 4 "C" alkaline batteries (included)

• Typical 40,000 operations per set of batteries

LEDs on keypad:

• Green indicates unlocked
• Yellow indicates programming mode
• Flashing green and solid yellow indicates deadbolt thrown

User Codes:

• Over 1,100,000 possible user combinations

• 100 user codes

• Operates utilizing any one to six digits per code - digits may be repeated or start with "0"

• One master code - assigns emergency, supervisory and user codes, allows access during low battery

• One emergency code - allows entry when deadbolt is thrown (KP8276/KP8277) or during low battery

• One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes

• "One time" user codes allows visitors "one time" entry

• Unit can be put in "passage only" mode at keypad

Mechanical Features:

• Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims

• Motor driven 8200 Series mortise lock

• Stainless steel 3/4" (19mm) projection one-piece, anti-friction reversible latch

• Stainless steel non-handed auxiliary deadlatch

• Specify hand on order. Easily field reversible without disassembling lock body

• Includes code to activate horn when keypad buttons are pushed

• Lever trim through-bolted for increased security and durability

• 1-3/4" (44mm) door standard. Consult factory for other thicknesses

• 4-3/4" (121mm) minimum stile for electrical function locks

Keypad Operated Products Mortise Lock Functions: All KP Mortise functions feature

• Deadlatch deadlocks latchbolt
• Inside lever retracts latchbolt (and deadbolt simultaneously) at all times

Cylinder Override Function features

• Key outside retracts latchbolt
• Cylinder override requires a #41 Cylinder (1-1/8")

Deadbolt Function features:

• When deadbolt thrown, outside lever operable only with Emergency or Master code
• 1" hardened stainless steel deadbolt
• Thumbturn retracts and projects deadbolt

Inside Escutcheon

• Zinc die cast
• Projection at bottom 9/32" (7mm)
• Projection at top 2-1/8" (54mm)
