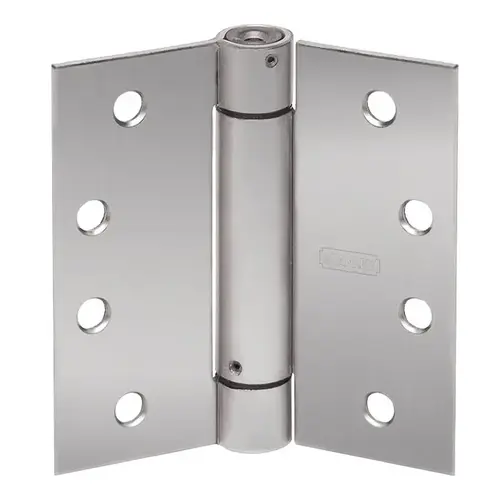

Stanley 2060R-4.5X4.5-626 Full Mortise Spring Hinge Satin Chrome
Item #: 2060R-4.5X4.5-626 by Stanley Security Solutions
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Hinge Size
4-1/2 x 4-1/2 Inch
Finish Description
Satin Chrome
Product Type
Hinge/Pivot
Maximum Door Height
8 ft.
Pin Type
Non-Removable
Color Code
626/US26D
Function
Spring Hinge
Mount
Full Mortise
Maximum Door Width
4 ft.
Hinge Type
Full Mortise Single Acting
Number of Knuckles
3
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Standards
ANSI K81071F; UL Listed; Meets NFPA80
Fastener Size
Machine Screw: 1/2 in x #12-24; Wood Screw: 1-1/4 in x #12
Hinge Corner
Square Corner
Function Family
Hinge/Pivot
Features
For Labeled Fire Doors, Stairwell Doors, Motel and Hotel Guest Room Doors; Apartment Unit Entrance Doors
Bearing Type
Spring
ADA Compliant
No
Finish Family
Satin Chrome
Series
2060 Series
Manufacturer Parent
DormaKaba
Sub-Series
2060R-4.5X4.5-626
Product Overview
Stanley 2060R 4 1/2 x 4 1/2 Spring Hinge are for labeled fire doors stairwell doors motel and hotel guest room doors apartment unit entrance doors. Meets NFPA80 standard for 3 hour fire doors. The Stanley 2060R-4545 hinge provides a closing action on heavy wood screen doors and can be used in either right or left hand applications. For use on full surface applications and spring tension is fully adjustable. Includes two hinges screws adjusting rod and stop pins.
