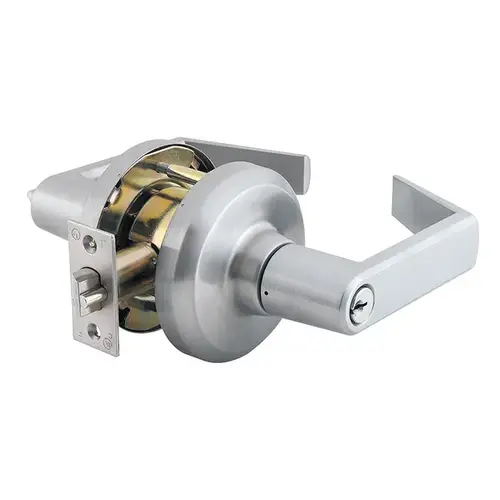

Stanley QCL150-E626-S4-478S-SC-KDClick To Copy QCL150 Series Entry/Office Lock, Satin Chrome

QCL100 SeriesHeavy-Duty Cylindrical Locks

STANLEY Commercial Hardware QCL100 Series delivers quality, performance and long-term durability at a great value. When you need a reliable lockset for high-traffic, heavy-abuse applications, the QCL100 Series offers flexible solutions with built-in security features to meet those demands. QCL100 locks are built to have an exceptionally reliable performance life, be easy to install and remain vandal resistant.

Features:

• Tested to meet Grade 1 specification of 800,000 cycles.

• Standard clutching mechanism provides resistance to damage caused by physical force.

• Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag.

• Concealed mounting screws.

• Compartmentalized packaging allows for quick and easy installation.

Certifications:

• ANSI/BHMA A156.2 Series – Grade 1

• ANSI A117.1 Accessibility Code (ADA Compliant)

• UL/cUL Listed (3 hours) for "A" label single-door applications
  (4' x 8') (1.219m x 2.438m)

• UL10C/UBC 7-2 (1997) Positive Pressure Rated

• UL10B Pressure Rated

• California State Reference Code (formerly Title 19 – Fire Marshal)

• Hurricane Compliant – Miami-DADE N.O.A.

Specifications: Handing:

• ll QCL100 Series Levers Locksets are non-handed.

Door thicknes:

• 1 3/8" - 2" (35mm-51mm) standard.

Backset:

• 2 3/4" (70mm) square standard. 2 3/8" and 5" (60mm, 127mm) available.

Exposed trim:

• Pressure cast zinc, plated to match finish designation.

Strike:

• ANSI Strike 1 1/4" x 4 7/8" (32mm x 124mm) standard.
• Other strike options also available.

Door prep:

• 2 1/8" (54mm) diameter cross bore.

Latch bolt:

• Keyed/Exterior 1/2" (12.7mm) steel throw;Interior 1/2" (12.7mm) spring latch.

Latch faceplate:

• 1 1/8" x 2 1/4" (29mm x 57mm) standard.

• Single dummy is surface mounted.

• Electrification options available.

Keying:

• 6-pin non-IC brass cylinders. 6 or 7 pin SFIC option available. Many keying options available from our factory to include, but not limited to, master keying, grand master keying and construction keying.

• 2 keys per lockset.

• Offered with the following keyway options: BF-BEST "F" SFIC, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, & LC-Less Cylinder. Consult factory for other cylinder options.

Warranty:

• Lifetime Mechanical, 3-year finish,* and 1-year electrical
• *(613/US10B carries no finish warranty)

Functions:

• Series - QCL120
• Description - Single Dummy

• ANSI - F75
• Series - QCL130
• Description - Passage

• ANSI - F111
• Series - QCL135
• Description - Communicating

• ANSI - F76
• Series - QCL140
• Description - Privacy

• ANSI - F109
• Series - QCL150
• Description - Entry/Office

• ANSI - F109
• Series - QCL151
• Description - Entry/Office SFIC

• ANSI - F90
• Series - QCL154
• Description - Corridor

• ANSI - F90
• Series - QCL155
• Description - Corridor SFIC

• ANSI - F84
• Series - QCL160
• Description - Classroom

• ANSI - F84
• Series - QCL161
• Description - Classroom SFIC

• ANSI - F110
• Series - QCL168
• Description - Classroom Security

• ANSI - F110
• Series - QCL169
• Description - Classroom Security SFIC

• ANSI - F86
• Series - QCL170
• Description - Storeroom

• ANSI - F86
• Series - QCL171
• Description - Storeroom SFIC

• Series - QCL192
• Description - Electronically Locked

• Series - QCL193
• Description - Electronically Locked SFIC

• Series - QCL194
• Description - Electronically Unlocked

• Series - QCL195
• Description - Electronically Unlocked SFIC

Finishes: 605:

• Bright Brass

613:

• Oil Rubbed Bronze

619:

• Satin Nickel

625:

• Bright Chrome

626:

• Satin Chrome
