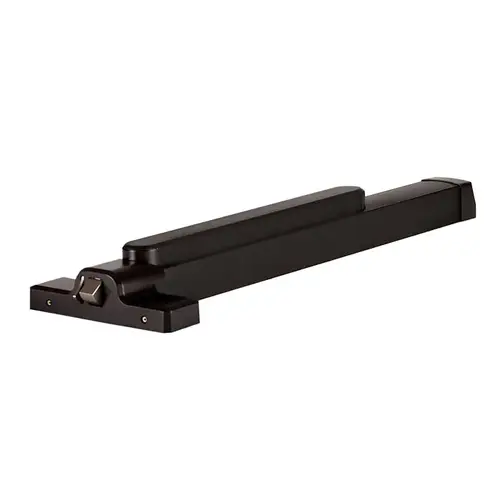

Stanley QED126-36-7-313ANClick To Copy QED126 Series Heavy-Duty Exit Device, Dark Bronze Anodized

QED100 SeriesExit Devices

Enhanced versatility for high-use applications.
STANLEY Commercial Hardware designed the QED100 exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. A comprehensive offering of trim and finish options makes the QED100 series compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution.

Strength and durability come standard.
We engineered our QED100 series with features like thru bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose.

STANLEY Commercial Hardware QED100 series exit devices provide ultimate strength and flexibility. And each product is backed by STANLEY—the name more Americans trust with their security.

Features: Comprehensive offering:

• With a wide range of device types, trim selections, and enhanced security features available, you can configure the QED100 series for even more applications.

Consistent styling:

• We designed the QED100 series with the same aesthetic features you’ll find in QED200 narrow stile exit devices, so it’s easy to maintain consistent styling throughout your facility.

Industry-leading warranty:

• Each QED100 product comes with a lifetime mechanical warranty, a three-year warranty on finish, and a one-year warranty on electrical components.

Exceeds safety standards:

• The QED100 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. Available options include hurricane compliance and fire rating. The series includes a thru bolt design for enhanced security and durability.

Easy installation:

• The QED100 series comes non-handed and field reversible, and is also field sizeable to fit non-standard doors.

Short lead time:

• QED100 exit devices are available for immediate shipment

Certifications:

• ANSI/BHMA A156.3 Series—Grade 1

• ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)

• UL/cUL listed (3 hour) for "A" label door applications (8' by 8')

• California Administrative Code Title 24 compliant for Sierra and Summit lever trims

• Hurricane Compliant – Miami-DADA N.O.A. for Rim and SVR options

Materials and Options: Rim latch bolt:

• Stainless steel 3/4" (19mm) standard

SVR and CVR latch bolt:

• Stainless steel 1/2" (12.7mm) throw

Fasteners:

• Wood screws, machine screws, and sex bolts standard

Head cap and end cap:

• Zinc die-cast

Dogging:

• Hex key and cylinder dogging available

Sizing and Measurements:

• 36" field sizeable to 32" door

• 48" field sizeable to 36" door

Standard door thickness:

• 1 3/4" (44.5mm)

Standard backset:

• 2 7/8" (62mm) to face of doorstop

Rim stile width:

• 4 1/4" (108mm) minimum

SVR and CVR stile width:

• 3 1/2" (89mm) minimum

SVR and CVR door height:

• 7' and 8" options

Keying: Keyway options include:

• BF-SFIC "F", KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder

Exit Device Functions: QED111:

• Rim Hex Dog

QED112:

• Rim Cylinder Dog

QED113:

• Rim Fire-rated

QED114:

• SVR Hex Dog

QED115:

• SVR Cylinder Dog

QED116:

• SVR Fire-rated

QED117:

• SVR Less Bottom Rod – Hex Dog

QED118:

• SVR Less Bottom Rod – Cylinder Dog

QED119:

• SVR Less Bottom Rod – Fire-rated

QED124:

• CVR Hex Dog

QED125:

• CVR Cylinder Dog

QED126:

• CVR Fire-rated

QED127:

• CVR Less Bottom Rod – Hex Dog

QED128:

• CVR Less Bottom Rod – Cylinder Dog

QED129:

• CVR Less Bottom Rod – Fire-rated

Electrification: QED__LR:

• Electrified Latch Retraction - Requires power supply 8Q00312 or 8Q00313

QED__ED:

• Electrified Dogging - Uses power supply 8Q00314

QED__X:

• Request to Exit

QED__LRX:

• Electrified Latch Retraction with Request to Exit - Requires power supply 8Q00312 or 8Q00313

QED__EDX:

• Electrified Dogging with Request to Exit - Uses power supply 8Q00314

Finishes:

• 313AN - Anodized Duranodic Bronze

• 605 - Bright Brass

• 626 - Satin Chrome

Warranties:

• Lifetime mechanical

• Three-year finish

• One-year electrical
