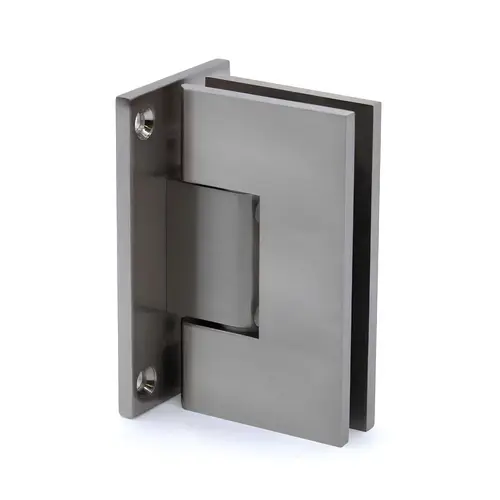

SGS SUP-112-AJ-BN Heavy Duty Wall to Glass Full Back Plate Adjustable Hinge-Brushed Nickel
Item #: SUP-112-AJ-BN by Structure Glass Solutions
Brand: SGS
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Product Overview
Adjustable Heavy Duty Wall Mount Full Back Finish: Brushed Nickel
Heavy Duty Adjustable to Angle Up to 90 Degrees without Removing Door
Use Monolithic Tempered Glass
Available in Several Beautiful Finishes
5 Year Warranty
SGS Supreme Heavy Duty Hinges can accommodate 3/8" (10 mm) to 1/2" (12 mm) glass. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees Out
Closing Type: Self-Centering when within 15 degrees of Closed Position or Adjustable to Angle Up to 90 Degrees without Removing Door
Cut-Out Required Includes: Gaskets and Screws
